Shop Legrand Arteor 1-Gang Single Pole Switched Socket with USB Type-C 18W | 572629A In Iraq Best Prices

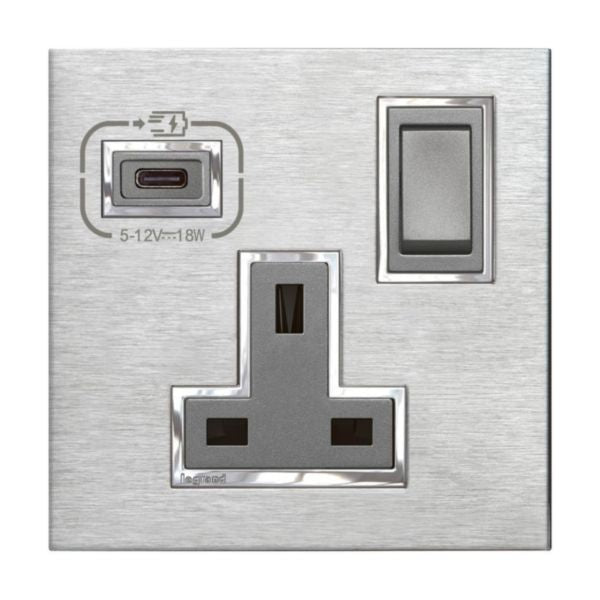

Arteor 1 gang switched outlet with integrated USB-C 18W charger, British standard 13A 250V, magnesium finish, safety shutters, and screw terminals for secure installation.
The Arteor 1 gang single pole switched outlet with USB C 18W charger combines modern design with practical functionality. This innovative product features a 2P+E British standard 13A 250V outlet integrated with a powerful USB Type-C charger delivering 18W of power. The magnesium finish provides an elegant appearance suitable for contemporary interior designs, while the screw-type terminals ensure secure and enhanced electrical contacts. Safety is prioritized with built-in safety shutters that maximize child protection, making this outlet ideal for homes with young children.
Designed for both new builds and renovation projects, the Arteor outlet offers quick and easy installation in a single wall box. The marked terminals facilitate easy identification during installation, and the strip length indicator helps prevent wire waste. With dimensions of 83.5mm width, 78.5mm height, and 34.7mm depth, this dual-function device operates at 13A nominal current and 250V nominal voltage across 50-60Hz frequencies. The product features an IP20 degree of protection and IK04 impact strength rating, making it suitable for standard indoor residential and commercial applications.
The USB Type-C port supports Power Delivery technology, providing convenient charging for modern USB-C devices simultaneously with traditional electrical outlet functionality. The thermoplastic material construction is halogen-free, meeting environmental safety standards. Operating temperature range is -5 to 35°C, with storage capabilities from -20 to 70°C. This is a two-module assembly with enhanced contact protection and terminal marking indication, making it a versatile solution for modern electrical installations.
Key Features
- 2P+E British Standard 13A 250V outlet with integrated USB Type-C 18W Power Delivery charger
- Magnesium finish with elegant grey color providing modern aesthetic appeal
- Enhanced safety shutters maximize child protection for residential use
- Screw-type terminals with marked identification for secure and easy installation
- Strip length indicator prevents wire waste during installation
- Halogen-free thermoplastic material construction meeting environmental standards
- Quick and easy installation in single wall box for new builds and renovations
- IP20 degree of protection and IK04 impact strength rating
- Two-module assembly design for optimal space utilization
- Operating temperature range -5 to 35°C with storage capability -20 to 70°C
Technical Specifications
| Specification |
Value |
| Model | British Standard |
| Outlet Type | 2P+E Single Gang Switched Outlet |
| Nominal Current Rating | 13 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| USB Ports | 1 x USB Type-C |
| USB Power Output | 18 W |
| USB Max Current | 3 A |
| Power Delivery | Yes |
| Connection Type | Screw Terminal |
| Terminal Capacity | 1-4 mm² |
| Cable Type Compatible | Flexible or Rigid |
| Number of Modules | 2 |
| Assembly Type | Basic element with full cover plate |
| Contact Protection | Enhanced |
| Safety Shutters | Yes |
| Device Width | 83.5 mm |
| Device Height | 78.5 mm |
| Device Depth | 34.7 mm |
| Built-in Depth | 23.4 mm |
| Minimum Installation Box Depth | 35 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Color | Grey |
| Finish | Magnesium Metallic |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Surface Protection | Untreated |
| Surface Finishing | Glossy |
| Operating Temperature Range | -5 to 35 °C |
| Storage Temperature Range | -20 to 70 °C |
| Voltage Type | AC |
| Mounting Method | Flush-mounted |
| On/Off Switch | Yes |
| Terminal Marking | Yes |
| Prewired | No |
| SKU | 572629A |
| EAN | 3414972428798 |
| Recommended Use | Inside use only |
