Shop Legrand Arteor 1 Gang Single Pole Switched Outlet USB C 18W | 572629A In Iraq Best Prices
Premium British Standard 13A socket with integrated USB-C 18W charger, safety shutters, and magnesium finish for modern electrical installations

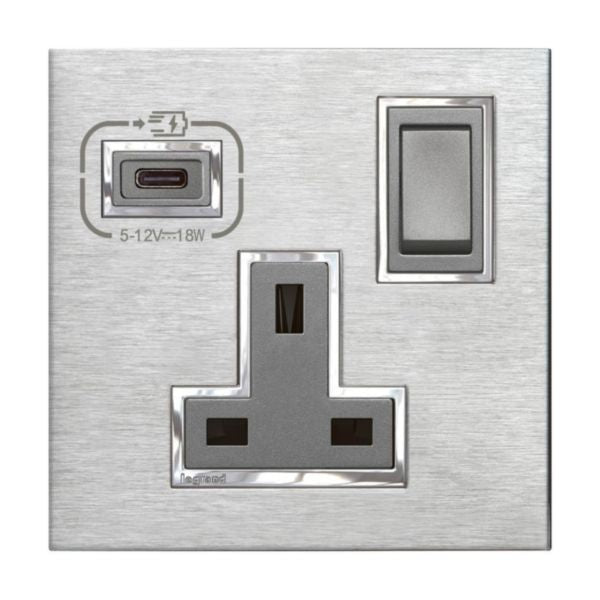

The Arteor™ 1 gang single pole switched outlet with USB C 18W charger combines traditional power distribution with modern charging convenience. This innovative two-in-one product features a British Standard 13A, 250V socket outlet integrated with a high-speed USB Type-C charger delivering 18W of power delivery. The outlet is equipped with safety shutters to maximize child protection, making it an ideal solution for both residential and commercial applications. The magnesium finish provides a premium aesthetic while the screw-type terminals ensure secured and enhanced electrical contacts with marked terminals for easy identification during installation.
Designed for quick and easy installation in standard single wall boxes, this socket outlet is optimized for new builds and ideal for renovation projects. The product features a strip length indicator that avoids waste of wires during installation, enhancing efficiency for electricians and installers. With a maximum USB current rating of 3A and 18W power output, it efficiently charges modern USB-C devices including smartphones, tablets, and other portable electronics. The device maintains a compact profile with dimensions of 83.5mm width, 78.5mm height, and 34.7mm depth, making it compatible with standard UK electrical installations.
The Arteor™ outlet incorporates advanced safety features including enhanced contact protection, a label space for information surfaces, and is halogen-free for environmental compliance. Operating across 50-60Hz frequencies with an IP20 protection rating and IK04 impact strength rating, this product meets stringent safety and durability standards. The thermoplastic material construction with glossy surface finishing ensures long-lasting performance and aesthetic appeal in any interior environment.
Key Features
- Integrated USB Type-C charger with 18W power delivery for fast device charging
- British Standard 13A, 250V socket outlet with safety shutters for child protection
- Premium magnesium finish with elegant aesthetic design
- Screw-type terminals with marked identification for secure connections
- Quick installation with strip length indicator to minimize wire waste
- Halogen-free construction for environmental compliance
- Enhanced contact protection and IP20 protection rating
- Compact dimensions suitable for standard single wall boxes
- Thermoplastic material with glossy surface finishing
- Operating frequency 50-60Hz with IK04 impact strength rating
Technical Specifications
| Specification |
Value |
| Product Model | Arteor™ 1 Gang Single Pole Switched Outlet with USB C 18W |
| Standard | British Standard |
| Voltage Rating | 250V AC |
| Current Rating | 13A |
| Frequency | 50-60 Hz |
| USB Ports | 1x USB Type-C |
| USB Power Output | 18W |
| Maximum USB Current | 3A |
| Number of Modules | 2 |
| Socket Outlets | 1 (switchable) |
| Connection Type | Screw Terminal |
| Terminal Capacity | 1-4 mm² |
| Cable Section | 1-4 mm² (flexible or rigid) |
| Device Width | 83.5 mm |
| Device Height | 78.5 mm |
| Device Depth | 34.7 mm |
| Built-in Depth | 23.4 mm |
| Minimum Box Depth | 35 mm |
| Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Colour | Grey (Magnesium Finish) |
| Material | Thermoplastic |
| Surface Finishing | Glossy |
| Halogen Free | Yes |
| Contact Protection | Enhanced |
| Safety Shutters | Yes |
| On/Off Switch | Yes |
| Power Delivery | Yes |
| Operating Temperature | -5 to +35°C |
| Storage Temperature | -20 to +70°C |
| Mounting Method | Flush-mounted |
| Assembly Arrangement | Basic element with full cover plate |
| Protective Contact | Flat |
| Number of Phases | 1 |
| Concurrently Switching Neutral | No |
| Reference Number | 572629A |
| EAN Code | 3414972428798 |
