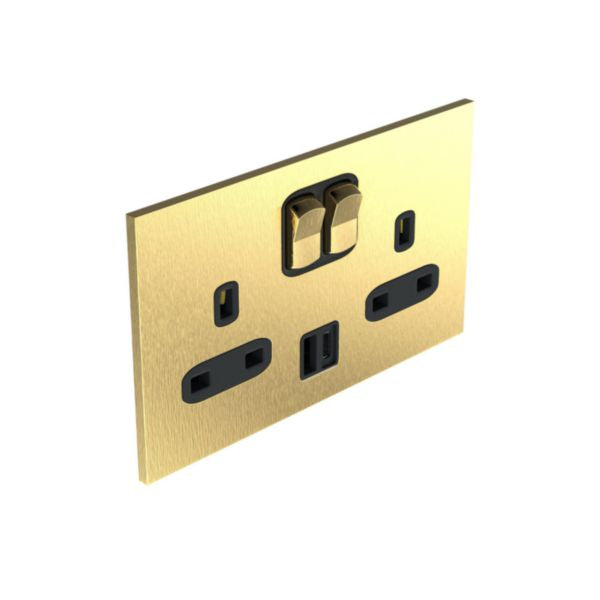

Shop Legrand Art d’Arnould USB Charger 3A 15W Socket Brushed Steel | AR-68226 In Iraq Best Prices
Premium dual British Standard socket with USB-A and USB-C charging (3A 15W). Brushed gold finish, screw terminals, certified to BS1363 and CEI 62368-1:2014. Perfect for smartphones, tablets, and power banks.
The Art d'Arnould USB Charger 3A 15W is a premium dual-function electrical socket combining traditional British Standard 2-gang switched socket outlets with modern USB charging capabilities. This innovative product features both USB-A and USB-C ports, delivering 3A at 5V for a total of 15W power output, making it ideal for simultaneously charging smartphones, tablets, and power banks. The brushed gold finish provides an elegant aesthetic that complements any interior design while maintaining the highest safety and reliability standards.
This socket outlet is manufactured with precision-engineered brass components and includes a complete 2G plate in brushed gold measuring 86x146mm. The product is designed for flush-mounting installation in standard British Standard boxes with a minimum depth of 40mm. Each unit features screw-type terminals with capacity for cables ranging from 2.5mm² to 6mm², ensuring compatibility with both flexible and rigid electrical cables with a standard stripping length of 12mm.
The Art d'Arnould USB Charger has been rigorously tested and certified to meet international safety standards including CEI 62368-1:2014 and BS1363. The USB connectors have undergone mechanical testing certified by independent laboratories, guaranteeing reliability for up to 10,000 insertions. This product is recommended for indoor use only and should be installed after all wall coatings and finishes have been completely applied to ensure optimal aesthetic appearance.
Key Features
- Dual USB ports with USB-A and USB-C connectors for universal device compatibility
- High-speed charging capability delivering 3A at 5V for total 15W power output
- Two British Standard 13A 250V switched socket outlets with single pole switching
- Premium brushed gold finish with brass construction for durability and elegant aesthetics
- Screw-type terminals compatible with 2.5mm² to 6mm² flexible or rigid cables
- Enhanced contact protection with lockable design and eject mechanism
- Certified to international safety standards BS1363 and CEI 62368-1:2014
- Tested for reliability up to 10,000 USB insertions by independent laboratories
- Flush-mounting design compatible with standard British Standard boxes (minimum 40mm depth)
- Halogen-free construction for environmental safety and compliance
Technical Specifications
| Specification |
Value |
| Product Model | Art d'Arnould USB Charger 3A 15W |
| Reference Number | AR-68226 |
| EAN Code | 3233625159496 |
| Socket Type | 2 gang British Standard switched socket outlet 13A 250V + USB A+C |
| USB Specifications | USB-A (1 port) + USB-C (1 port), 3A at 5V, 15W total power output |
| Nominal Current | 13A |
| Nominal Voltage | 250V |
| Frequency | 50-60 Hz |
| Finish | Brushed Gold |
| Material | Brass with metallic surface protection |
| Plate Dimensions | 86mm (height) x 146mm (width) |
| Device Depth | 33mm |
| Built-in Depth | 24mm |
| Minimum Installation Box Depth | 40mm |
| Terminal Type | Screw terminals |
| Cable Capacity | 2.5mm² to 6mm² (flexible or rigid) |
| Stripping Length | 12mm |
| Number of Socket Outlets | 2 |
| Number of Modules | 4 |
| Switchable Socket Outlets | 2 |
| IP Rating | IP20 |
| IK Rating | IK02 |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -10°C to +70°C |
| Voltage Type | AC |
| Protective Contact | Flat |
| Connection Type | Screw terminals |
| Mounting Method | Flush-mounted |
| Fastening Type | Mounting with screw |
| Halogen Free | Yes |
| Enhanced Contact Protection | Yes |
| Lockable | Yes |
| Eject Mechanism | Yes |
| Safety Standards | BS1363, CEI 62368-1:2014 |
| USB Mechanical Testing | Certified for up to 10,000 insertions |
| Power Delivery | No |
| Smart Home Compatibility | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
Order Legrand Art d’Arnould USB Charger 3A 15W Socket Brushed Steel | AR-68226 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
