Shop Legrand Art d’Arnould Combi BS 13A Switched Socket with USB 2.4A | AR-68227 In Iraq Best Prices
Premium British Standard 13A switched socket with integrated USB A 2.4A charging port in brushed gold finish. Features reliable 13A-250V performance, screwed terminals for 2.5-6mm² cables, enhanced contact protection, and eject mechanism for convenient device charging.

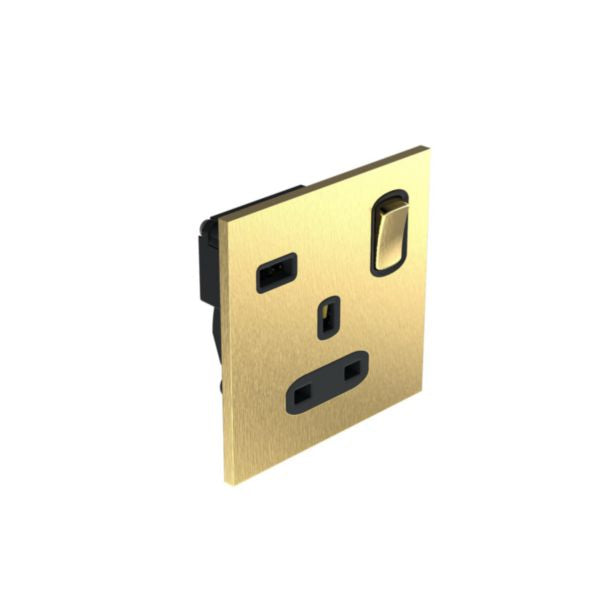

The Art d'Arnould Combi BS 13A Switched Socket SP + USB A 2.4A 12W in Epure brushed gold finish is a premium combination socket designed for modern homes and commercial spaces. This innovative product combines a single-gang British Standard switched socket outlet with an integrated USB A port, allowing simultaneous charging of traditional appliances and USB-powered devices. The brushed gold finish delivers an elegant, contemporary aesthetic that complements any interior design scheme.
This socket features reliable performance with a 13A-250V rating and includes one USB A 2.4A 5V 12W port for rapid charging of smartphones, tablets, and power banks. The product is equipped with screwed terminal connections supporting cable sizes from 2.5mm² to 6mm², making it compatible with both flexible and rigid cables. The socket comes with a pre-installed 1G brass plate measuring 86x86mm, though color and surface variations may occur due to craftsman manufacturing processes.
The Art d'Arnould Combi socket has been rigorously tested and certified to meet CEI 62368-1: 2014 Safety standards and BS1363 specifications. With enhanced contact protection and an eject mechanism for USB devices, this socket provides both safety and convenience. The unit is designed for flush-mounting installation in boxes with a minimum depth of 40mm and operates reliably across a temperature range of -5°C to 35°C, making it suitable for various indoor environments.
Key Features
- Single-gang BS switched socket outlet rated 13A-250V with single pole switching capability
- Integrated USB A 2.4A 5V 12W port for rapid charging of smartphones, tablets, and power banks
- Brushed gold finish providing elegant contemporary aesthetic with metallic surface protection
- Enhanced contact protection and eject mechanism ensuring safety and convenient USB device removal
- Screwed terminal connections supporting flexible or rigid cables from 2.5mm² to 6mm² with 12mm stripping length
- Certified to CEI 62368-1: 2014 Safety standards and BS1363 specifications
- Halogen-free construction meeting environmental safety requirements
- Tested for mechanical reliability up to 10,000 USB insertions by certified laboratories
- Flush-mounting design compatible with boxes minimum 35-40mm deep
- Operating temperature range -5°C to 35°C suitable for various indoor environments
Technical Specifications
| Specification |
Value |
| Product Model | British Standard (BS) |
| Socket Rating | 13A-250V single pole switched |
| USB Port Specification | USB A 2.4A 5V 12W output |
| Number of USB Ports | 1 x USB A |
| Number of Socket Outlets | 1 outlet switchable |
| Number of Modules | 2 modules |
| Connection Type | Screwed terminal |
| Terminal Capacity | 2.5mm² to 6mm² with 12mm stripping length |
| Cable Compatibility | Flexible or rigid cables |
| Color Finish | Brushed gold metallic |
| Plate Material | Brass 86x86mm |
| Device Dimensions | Width 86mm x Height 86mm x Depth 33.5mm |
| Built-in Depth | 26mm |
| Minimum Installation Box Depth | 40mm |
| Degree of Protection | IP21 |
| Impact Strength Rating | IK02 |
| Mounting Method | Flush-mounted with screw fastening |
| Operating Temperature Range | -5°C to 35°C |
| Storage Temperature Range | -10°C to 70°C |
| Voltage Type | AC |
| Frequency | 50-60 Hz |
| Safety Standards | CEI 62368-1: 2014, BS1363 |
| Halogen Free | Yes |
| With On/Off Switch | Yes |
| Enhanced Contact Protection | Yes |
| Eject Mechanism | Yes |
| Insulated Mounting | Yes |
| With Function Lighting | No |
| Lockable | Yes |
| USB Mechanical Test Certification | Tested to 10,000 insertions |
| Reference Number | AR-68227 |
| EAN Code | 3233625159519 |
