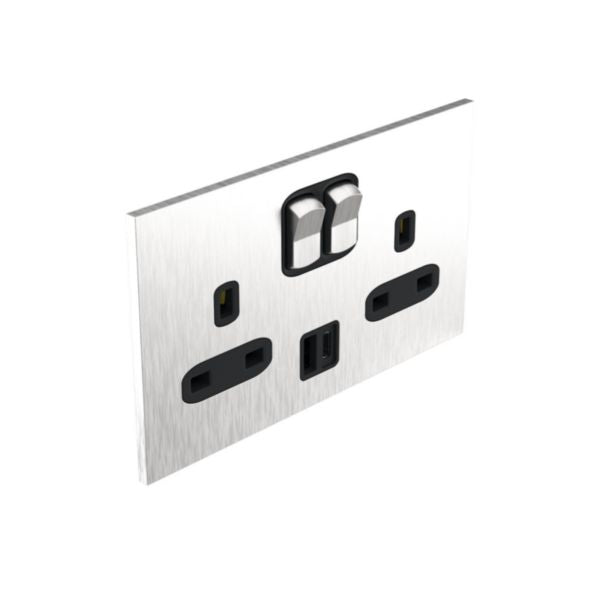

Shop Legrand Art d’Arnould Combi 2-Gang BS 13A Switched Socket with USB Type-A + Type-C Brushed Steel | AR-68126 In Iraq Best Prices
Premium British Standard dual switched socket with integrated USB A+C charging ports, delivering 15W fast charging in elegant brushed steel finish with enhanced safety features.
The Art d'Arnould Combi 2 BS 13A Switched Socket with USB A+C is a premium British Standard electrical outlet designed for modern homes and commercial spaces. This sophisticated brushed steel socket combines traditional reliability with contemporary charging capabilities, featuring both a standard USB-A port and the latest USB-C connector for universal device compatibility. The socket delivers 15W of power across both USB ports, enabling rapid charging for smartphones, tablets, and power banks simultaneously.
This dual-gang switched socket outlet maintains the highest safety standards, complying with BS1363 and CEI 62368-1: 2014 specifications. The brushed steel finish provides an elegant aesthetic that complements any interior design scheme, while the robust construction ensures durability with up to 10,000 USB insertion cycles certified by independent laboratory testing. The socket features screw-type terminals accommodating flexible or rigid cables ranging from 2.5mm² to 6mm² cross-section, with a convenient 12mm stripping length for easy installation.
Installation is straightforward with compatibility for standard BS flush-mounting boxes (minimum 35mm depth). The socket includes a 2-gang brass mounting plate (86x146mm) and comes prewired for the USB components, reducing installation time and complexity. The enhanced contact protection and eject mechanism ensure safe, reliable operation in residential and light commercial environments. This product represents the perfect balance between classic British electrical design and modern charging convenience.
Key Features
- Dual British Standard 13A switched socket outlets with single pole switching capability
- Integrated USB-A and USB-C charging ports delivering 15W combined power output
- Premium brushed steel finish with metallic surface protection and glossy coating
- Enhanced contact protection with eject mechanism for safe USB device insertion
- Certified for 10,000 USB insertion cycles with laboratory-tested reliability
- Screw-type terminals accommodating 2.5-6mm² flexible or rigid cables
- Full compliance with BS1363 and CEI 62368-1: 2014 safety standards
- Prewired USB components for simplified installation and reduced setup time
- Compatible with standard BS flush-mounting boxes (minimum 35mm depth)
- Includes 2-gang brass mounting plate (86x146mm) with included cover
Technical Specifications
| Specification |
Value |
| Product Model | Art d'Arnould British Standard Combi Socket |
| Socket Type | 2 gang BS 13A switched socket outlet with USB A+C |
| Nominal Current | 13 Amperes (A) |
| Nominal Voltage | 250 Volts (V) |
| Frequency | 50-60 Hz |
| USB Output Power | 15 Watts total (USB A and USB C combined) |
| USB Ports | 1x USB-A + 1x USB-C with eject mechanism |
| Number of Socket Outlets | 2 gang switched outlets |
| Number of Modules | 4 modules |
| Connection Type | Screwed terminal |
| Terminal Capacity | 2.5mm² to 6mm² flexible or rigid cables |
| Stripping Length | 12 mm |
| Material | Stainless steel with metallic surface finish |
| Colour | Brushed steel (Epure) |
| Surface Finishing | Glossy metallic |
| Device Width | 146 mm |
| Device Height | 86 mm |
| Device Depth | 33 mm |
| Built-in Depth | 24 mm |
| Minimum Box Depth | 40 mm (35mm minimum recommended) |
| Mounting Method | Flush-mounted with screw fastening |
| Mounting Plate | 2-gang brass plate 86x146mm included |
| IP Rating | IP20 |
| Impact Strength | IK02 |
| Protection Features | Enhanced contact protection, insulated mounting, lockable, with eject mechanism |
| Operating Temperature | -5°C to +35°C |
| Storage Temperature | -10°C to +70°C |
| Voltage Type | AC (Alternating Current) |
| USB Insertion Cycles | Up to 10,000 certified mechanical cycles |
| Safety Standards | BS1363, CEI 62368-1: 2014 |
| Halogen Free | Yes |
| Prewired | USB components prewired |
| Concurrently Switching Neutral | No |
| With Function Lighting | No |
| With Orientation Lighting | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Power Delivery Support | No |
| Smart Home Compatible | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Indoor/Outdoor | Indoor use only |
| Reference Number | AR-68126 |
| EAN Code | 3233625158833 |
| Brand | Legrand - Art d'Arnould Collection |
