Description

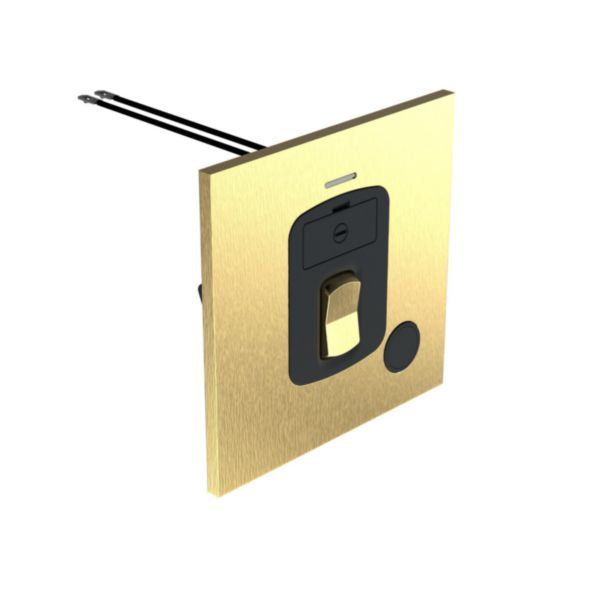

Shop Legrand Art d’Arnould 1-Gang Fused Connection Unit with Double Pole Switch Brushed Gold | AR-68252 In Iraq Best Prices

Premium handcrafted fused connect unit with double pole switch, 13A-250V, gold finish, featuring solid brass construction and power indicator for reliable indoor wiring solutions.
The Art d'Arnould 1 Gang Fused Connect Unit is a premium double pole switch with cord designed for residential and commercial applications. This expertly handcrafted wiring device features a solid brass construction with elegant gold finish, delivering both aesthetic appeal and exceptional durability. The unit is rated for 13A at 250V AC and includes a power indicator light for convenient operation monitoring. The 5x25mm glass fuse provides reliable circuit protection, while the screw connection terminals accommodate flexible or rigid cables from 2.5-6mm². This front-mounted device is IP21 rated for indoor use and operates reliably in temperatures ranging from -5°C to 35°C. The compact 86x86x29.5mm dimensions make it ideal for standard flush-mounted box installations. Perfectly adapting to contemporary interior design, this function offers architects and decorators the means to shape and model spaces with sophisticated elegance. The handcrafted manufacturing ensures unique character and premium quality in every unit.

Key Features

  • Expertly handcrafted with solid, genuine brass construction
  • Elegant gold finish with premium aesthetic appeal
  • Double pole switch with 13A rated current at 250V AC
  • Power indicator light for convenient operation monitoring
  • 5x25mm glass fuse for reliable circuit protection
  • Front-mounted design with IP21 degree of protection
  • Screw terminals accommodate 2.5-6mm² flexible or rigid cables
  • Compact 86x86mm dimensions for standard flush-mounted boxes
  • Halogen-free materials for environmental safety
  • Operating temperature range -5°C to 35°C for reliability

Technical Specifications

Specification Value
Product TypeFused Connect Unit with Double Pole Switch
BrandArt d'Arnould by Legrand
SKUAR-68252
EAN Code3233625159755
Rated Current13 A
Rated Voltage250 V AC
Frequency50-60 Hz
Connection TypeScrew Connection
Mounting MethodFront Mounting
Fuse TypeGlass Fuse 5x25 mm
Width86 mm
Height86 mm
Depth29.5 mm
Built-in Depth23.5 mm
Terminals Capacity2.5-6 mm²
Cable NatureFlexible or Rigid
Number of Terminals6
Degree of Protection (IP)IP21
Impact Strength (IK)IK02
Operating Temperature-5°C to 35°C
Storage Temperature-10°C to 70°C
Finish ColorGold
MaterialSolid Genuine Brass
Halogen FreeYes
Terminal MarkingYes
Antimicrobial TreatmentNo
ApplicationIndoor Residential and Commercial Use

Order Legrand Art d’Arnould 1-Gang Fused Connection Unit with Double Pole Switch Brushed Gold | AR-68252 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
