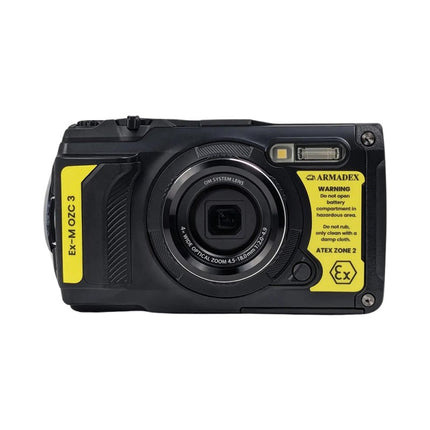

The Armadex Ex-M OZC 3 Explosion Proof Camera is a rugged digital camera specifically engineered for use in hazardous industrial environments where explosive gases may be present. Certified for ATEX Zone 2 (Gas), this intrinsically safe camera meets strict European safety standards for operation in explosive atmospheres such as oil and gas facilities, FPSOs, LNG tankers, chemical plants, and refineries.
Built with durability and reliability in mind, the camera features an IP68-rated enclosure providing complete protection against dust and water immersion. It can withstand drops from up to 2 meters, crushing forces up to 100 kgf, and freezing temperatures down to -10°C, making it ideal for demanding industrial field operations.
The camera is equipped with a high quality 12MP BSI CMOS sensor and a wide angle optical zoom lens that ensures clear and detailed images even in challenging environments. The device also includes advanced imaging features such as macro photography, time lapse recording, GPS location tagging, and multiple hazardous area shooting modes.
Despite its rugged construction, the Armadex Ex-M OZC 3 remains lightweight and portable, weighing approximately 249 grams. It supports SD memory cards and can capture up to 340 images on a single battery charge, making it an excellent tool for inspection documentation and industrial monitoring tasks.
Key Features
-
ATEX Zone 2 certified explosion proof camera
-
Intrinsically safe design for hazardous environments
-
High resolution 12MP BSI CMOS sensor
-
4x optical zoom with wide angle lens
-
IP68 waterproof and dustproof protection
-
Drop resistant up to 2 meters
-
Crush resistant up to 100 kgf
-
GPS tagging and environmental sensors
-
Time lapse photography capability
-
Lightweight rugged industrial design
Specifications
| Specification |
Details |
| Brand |
Armadex |
| Model |
Ex-M OZC 3 |
| Device Type |
Explosion Proof Industrial Camera |
| ATEX Zone |
Zone 2 (Gas) |
| ATEX Marking |
II 3G Ex ic IIC T6 Gc |
| EU Directive |
2014/34/EU |
| Protection Rating |
IP68 |
| Image Sensor |
12 MP 1/2.3 BSI CMOS |
| Processor |
TruePic VIII |
| Lens |
25–100mm equivalent |
| Optical Zoom |
4x |
| Aperture |
F2.0 (Wide) – F4.9 (Tele) |
| Macro Capability |
Super macro from 1 cm |
| Image Stabilization |
Sensor shift stabilization |
| ISO Range |
100 – 12800 |
| Shutter Speed |
1/2 – 1/2000 sec |
| Video Recording |
4K 30fps |
| HD Video |
1080p 60fps |
| Display |
3.0 inch LCD |
| Connectivity |
USB Type C, WiFi, Bluetooth |
| GPS |
GPS / Compass / Altimeter |
| Battery |
LI-92B Li-ion |
| Dimensions |
113.9 × 65.8 × 32.7 mm |
| Weight |
Approx. 249 g |
| Operating Temperature |
Down to -10°C |
| Shock Resistance |
2.1 m drop |
| Crush Resistance |
100 kgf |
