Shop Legrand Angled Plug Hypra IP 44 380/415V 32A 3P+E Metal | 52973 In Iraq Best Prices
Professional industrial angled plug with IP 44 protection, 380-415V AC, 32A capacity, metal construction, and 3P+E configuration for demanding industrial applications

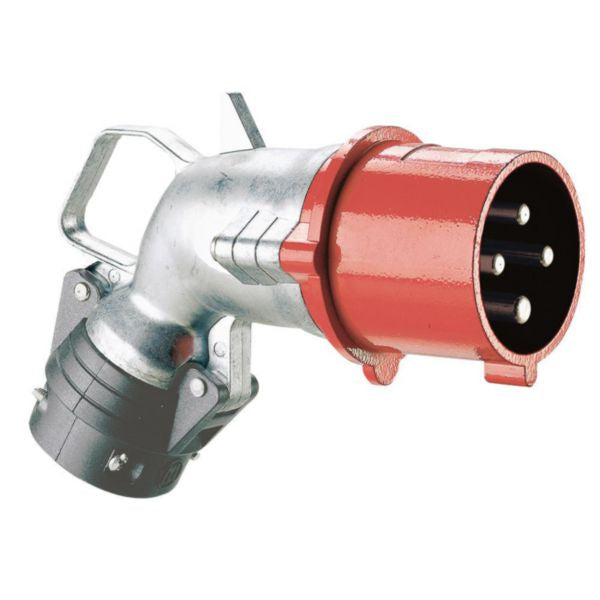

The Angled Plug Hypra is a professional-grade industrial electrical connector designed to meet the highest international standards for safety and durability. This IP 44-rated metal plug operates at 380-415V AC with a 32A capacity and features a 3-phase plus earth (3P+E) configuration, making it ideal for demanding industrial and commercial applications. Manufactured by Legrand, this connector conforms to IEC 60309-1 and IEC 60309-2 standards, ensuring reliable performance in harsh environments.
This angled plug is constructed from premium metal materials and incorporates advanced safety features including self-extinguishing properties rated at 850°C for active parts support and 650°C for plastic housing. The connector features a red identification color (RAL 3000) with a 6-hour clock position, making it easily recognizable in busy electrical installations. The IP 44 protection rating according to IEC 60529 ensures protection against solid objects larger than 1mm and water splashes from any direction, while the IK 10 impact resistance rating guarantees durability in demanding industrial environments.
Equipped with screwed terminal connections and anti-kink cable entry sleeves, this plug provides secure and reliable electrical connections. The angled insertion design allows for flexible installation in tight spaces and complex layouts. Operating temperature range from -20°C to +100°C ensures functionality across diverse climate conditions. This industrial plug is not suitable for charging electric vehicles and is specifically designed for fixed industrial installations requiring robust, high-amperage power distribution.
Key Features
- IP 44 protection rating against solid objects and water splashes
- Metal construction with IK 10 impact resistance for durability
- 32A capacity with 3-phase plus earth (3P+E) configuration
- Angled insertion design for flexible installation in tight spaces
- Screwed terminal connections with anti-kink cable entry sleeves
- Self-extinguishing properties at 850°C for safety
- Conforms to IEC 60309-1 and IEC 60309-2 standards
- Red identification color (RAL 3000) for easy recognition
- Operating temperature range from -20°C to +100°C
- 6-hour clock position for standardized orientation
Technical Specifications
| Specification |
Value |
| Product Reference | 052973 |
| Brand | Legrand Hypra |
| Rated Amperage | 32 A |
| Voltage Rating | 380-415 V AC (50/60 Hz) |
| Number of Poles | 4 (3P+E) |
| Identification Colour | Red (RAL 3000) |
| Clock Hour Position | 6 h |
| Degree of Protection | IP 44 (IEC 60529) |
| Impact Resistance | IK 10 (Metal) |
| Connection System | Screwed terminal |
| Insert Direction | Angled |
| Material | Metal |
| Cable Entry | Anti-kink sleeve |
| Self-Extinguishing Temperature (Active Parts) | 850°C |
| Self-Extinguishing Temperature (Plastic Housing) | 650°C |
| Operating Temperature Range | -20°C to +100°C |
| Standards Compliance | IEC 60309-1, IEC 60309-2, IEC 60695-2-10, IEC 62262 |
| EAN Code | 3245060529734 |
| Phase Inverter | No |
| Suitable for EV Charging | No |
