Description

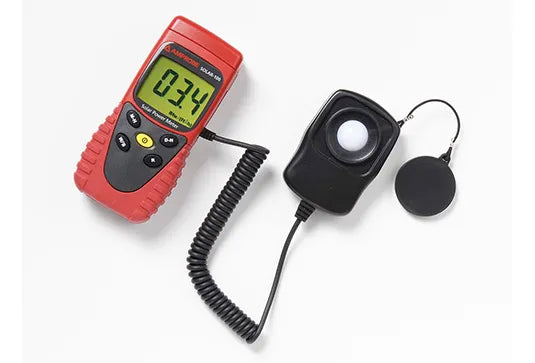

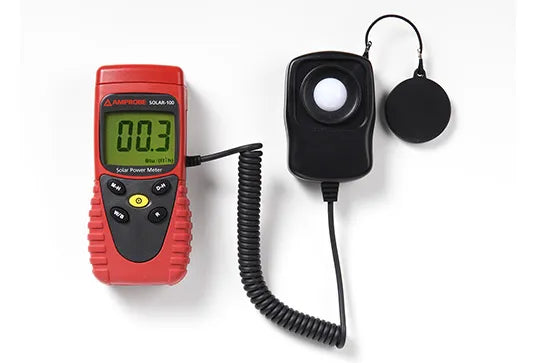

The Amprobe SOLAR-100 Solar Power Meter is a versatile tool designed to optimize the placement of solar systems and verify window efficiency. It measures solar output, aiding in the calculation of overall energy, efficiency, and optimal positioning of solar panels.

Key Features:

Dual Measurement Modes:
- Power Mode: Measures the power per unit area of incident solar radiation.
- Transmission Mode: Calculates the solar power transmission percentage of materials, such as determining how much solar power (%) is transmitted through a window.
User-Friendly Display: Equipped with a convenient, easy-to-read display featuring remote sensor technology.
Selectable Units: Choose between measurement units of W/m² or BTU/(ft² x h) to suit your specific needs.
Data Hold Function: Allows you to freeze the current reading on the display for easy recording.
Max/Min Functions: Identifies locations with maximum or minimum power readings, essential for thorough analysis.

Applications:

Window Performance Assessment: Calculate and verify the heating or heat reduction caused by direct sunlight.
Solar Radiation Measurements: Essential for research and development in solar energy applications.
Solar Power Research: Determine the optimal location for solar panels or solar water heaters.
Laboratory Use: Ideal for physics and optical laboratories requiring precise light measurements.
Meteorology and Agriculture: Useful in studies involving solar radiation impacts.

Specifications:

Specification	Details
Measurement Range	Up to 2000 W/m², 634 BTU/(ft² x h)
Display	3½ digits, 2000 readings
Battery	1 x 9V Alkaline battery (included)
Dimensions	132 x 60 x 38 mm
Weight	Approximately 150 g

What's Included:

SOLAR-100 Solar Power Meter
Installed 9V Battery
Carrying Case

Amprobe Solar Power Meter | SOLAR-100

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

The Amprobe SOLAR-100 measures solar power and transmission up to 2000 W/m², featuring power and transmission modes, a clear display, and selectable units for optimal solar system placement. Read more

SKU: SOLAR-100

Shipped today? Order within: Dec 08, 2025 17:00:00 +0300

Shipped today? Order within: Dec 08, 2025 17:00:00 +0300

The Amprobe SOLAR-100 measures solar power and transmission up to 2000 W/m², featuring power and transmission modes, a clear display, and selectable units for optimal solar system placement.
