Description

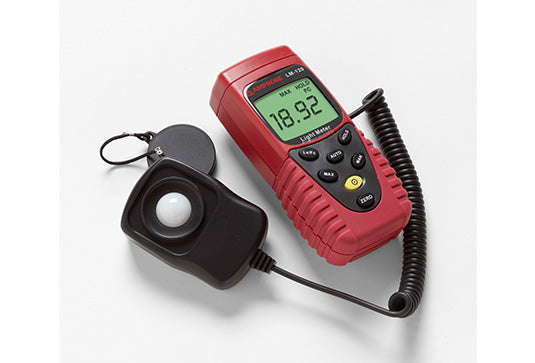

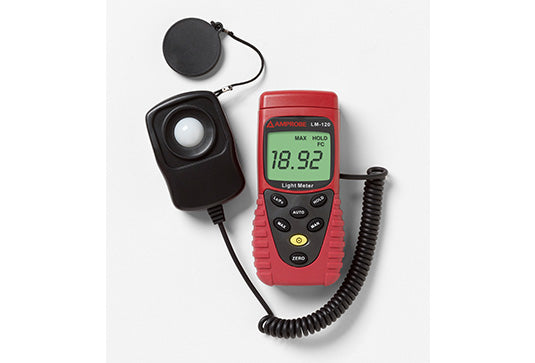

The Amprobe LM-120 Light Meter is designed to measure visible light from various sources such as fluorescent, metal halide, high-pressure sodium, and incandescent lighting. It offers both auto-ranging and manual range selection with measurement capabilities up to 200,000 lux or 20,000 foot-candles. The LM-120 provides accurate, high-resolution readings with a data hold function, max/min memory, and a zero function to nullify display values before measurements.

Features:

Measures illumination in lux or foot-candles.
Wide measurement range: up to 200,000 lux / 20,000 foot-candles.
Auto-ranging and manual range modes for flexibility.
Data hold, max/min memory functions for easy data recording.
Zero function to nullify the display before taking measurements.
Auto power-off to conserve battery life.
Large 3½-digit LCD display for clear visibility.
Silicon photodiode sensor with spectral response filter.

Specifications:

Specification	Details
Measurement Units	Lux, Foot-candles (fc)
Measurement Range (Lux)	20, 200, 2000, 20,000, 200,000
Measurement Range (Foot-candles)	20, 200, 2000, 20,000
Resolution	0.01 lux/fc
Sensor Type	Silicon photodiode with filter
Data Functions	Data Hold, Max/Min Hold
Power Source	9V battery (included)
Auto Power-Off	Yes
Display	3½-digit LCD display
Weight	250 grams

Amprobe LM-120 Light Meter

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Portable light meter for measuring visible light in lux or foot-candles with auto-ranging and manual modes for energy efficiency audits. Read more

SKU: LM-120

Portable light meter for measuring visible light in lux or foot-candles with auto-ranging and manual modes for energy efficiency audits.

The Amprobe LM-120 Light Meter is designed to measure visible light from various sources such as fluorescent, metal halide, high-pressure sodium, and incandescent lighting. It offers both auto-ranging and manual range selection with measurement capabilities up to 200,000 lux or 20,000 foot-candles. The LM-120 provides accurate, high-resolution readings with a data hold function, max/min memory, and a zero function to nullify display values before measurements.

Features:

Measures illumination in lux or foot-candles.
Wide measurement range: up to 200,000 lux / 20,000 foot-candles.
Auto-ranging and manual range modes for flexibility.
Data hold, max/min memory functions for easy data recording.
Zero function to nullify the display before taking measurements.
Auto power-off to conserve battery life.
Large 3½-digit LCD display for clear visibility.
Silicon photodiode sensor with spectral response filter.

Specifications:

Specification	Details
Measurement Units	Lux, Foot-candles (fc)
Measurement Range (Lux)	20, 200, 2000, 20,000, 200,000
Measurement Range (Foot-candles)	20, 200, 2000, 20,000
Resolution	0.01 lux/fc
Sensor Type	Silicon photodiode with filter
Data Functions	Data Hold, Max/Min Hold
Power Source	9V battery (included)
Auto Power-Off	Yes
Display	3½-digit LCD display
Weight	250 grams
