Description

The Amprobe LCR55A is a versatile electronic component tester designed for accurate measurements of inductance, capacitance, and resistance. This device also supports transistor and diode testing, making it ideal for engineers and technicians working in electronics. It features a large digital LCD display for clear readings, data hold and max functions for convenient analysis, and automatic power-off to extend battery life.

Key Features:

Inductance Measurement: Ranges up to 200 Henry.
Capacitance Measurement: Ranges up to 2 Millifarad.
Resistance Measurement: Ranges up to 20 Megaohms.
Transistor Testing: Supports NPN and PNP types.
Diode Testing: Includes standard and microwave diodes.
Large Digital LCD Display: Provides clear and precise readings.
Data Hold and Max Functions: Allows for easy data analysis.
Auto Power-Off Feature: Helps extend battery life.
Low Battery Indicator: Alerts users when a battery replacement is needed.

Specifications:

Specification	Details
Inductance Ranges:	200 µH, 2 mH, 200 mH, 200 H
Capacitance Ranges:	200 pF, 2000 pF, 2 µF, 20 µF, 200 µF, 2 mF
Resistance Ranges:	20Ω, 200Ω, 2kΩ, 20kΩ, 2MΩ, 20MΩ
Transistor Testing:	Supports NPN and PNP types
Diode Testing:	Supports standard and microwave diodes
Display:	3.5-digit LCD screen with high clarity
Auto Power-Off:	Yes, for battery conservation
Low Battery Indicator:	Yes, displays warning when battery replacement is needed
Power Supply:	9V Battery (NEDA 1604)
Dimensions:	190 × 89 × 31 mm
Weight:	370 g

What's Included:

Amprobe LCR55A Meter
High-quality test leads
Pre-installed 9V battery
User manual

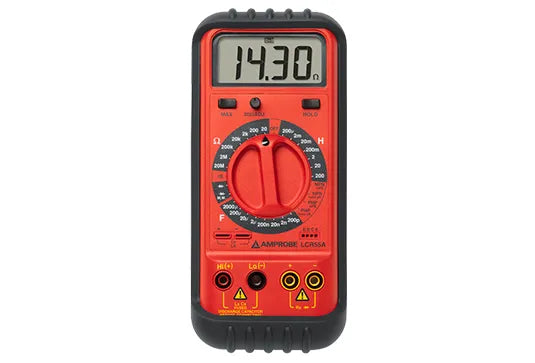

Amprobe Inductance Capacitance & Resistance Meter | LCR55A
