Description

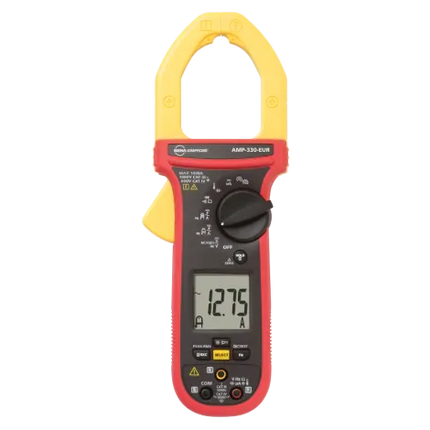

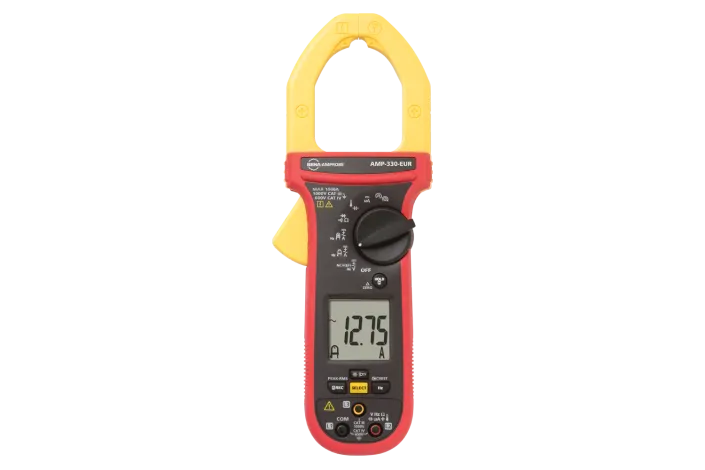

The Amprobe AMP-330-EUR Clamp Meter is engineered to meet the demands of modern industrial environments, offering a comprehensive range of measurement functions essential for motor testing and HVAC applications. Equipped with True RMS sensing, low pass filters, and a fast-response processor, this clamp meter ensures quick and accurate measurements, even in noisy electrical environments.

Key Features:

True RMS Sensing: Provides accurate measurements of AC voltage and current, regardless of waveform distortions.
AC/DC Current Measurement: Measures up to 1000A for both AC and DC currents.
AC/DC Voltage Measurement: Measures up to 1000V for both AC and DC voltages.
Low Pass Filter: Allows accurate measurement of voltage and current on variable frequency drives by filtering out high-frequency noise.
Inrush Current Measurement: Captures and displays the initial surge current when electrical equipment is turned on, which is vital for motor maintenance.
Non-Contact Voltage Detection: Enables safe detection of live wires without direct contact.
Amp-Tip Function: Allows for precise measurement of low currents down to 0.1A, facilitating accurate readings on both large and small diameter wires.
Temperature Measurement: Utilizes a Type K thermocouple to measure temperatures ranging from -40°C to 400°C (-40°F to 752°F).
Capacitance and Frequency Measurement: Offers the ability to measure capacitance up to 2500 µF and frequency up to 999.9 Hz.
Resistance Measurement and Continuity Testing: Measures resistance up to 60 kΩ and includes a continuity beeper for quick circuit checks.
3-Phase Sequence and Motor Rotation Testing: Ensures proper connection and operation of motors in three-phase systems.
Data Hold, Min/Max Recording, and Peak Hold Functions: Facilitates easy data analysis and recording.
Backlit Display and Built-in Flashlight: Enhances visibility in low-light environments.
Auto Power Off: Conserves battery life by automatically turning off the meter after a period of inactivity.

Specifications:

Specification	Details
AC Current Range:	0 to 1000A
DC Current Range:	0 to 1000A
AC Voltage Range:	0 to 1000V
DC Voltage Range:	0 to 1000V
Resistance Range:	0.0 to 60.00 kΩ
Capacitance Range:	0.0 to 2500 µF
Frequency Range:	5.00 to 999.9 Hz
Temperature Range:	-40.0 to 400.0°C (-40.0 to 752.0°F)
DC Microamps Range:	0.0 to 2000 µA
Jaw Opening Size:	51 mm (2.0 inches)
Display:	3-5/6 digit, 6000 counts, backlit LCD
Safety Rating:	CAT IV 600V, CAT III 1000V
Dimensions (L x W x H):	258 x 94 x 44 mm (10.16 x 3.70 x 1.73 inches)
Weight:	420 g (0.93 lb)
Power Supply:	2 x 1.5V AA batteries
Operating Temperature:	-10°C to 50°C (14°F to 122°F)
Storage Temperature:	-20°C to 60°C (-4°F to 140°F)
Relative Humidity:	Non-condensing at ≤10°C, 90% at 10 to 30°C, 75% at 30 to 40°C, 45% at 40 to 50°C

What's Included:

Amprobe AMP-330-EUR Clamp Meter
Test Leads
Type K Thermocouple
Alligator Clips
Carrying Case
2 x 1.5V AA Batteries (pre-installed)
User Manual
