Description

The Amprobe AMB-55 Industrial High-Voltage Insulation Tester is designed for testing insulation in wires, cables, transformers, motors, surge arrestors, and generators. It offers selectable testing voltages from 250 V to 5,500 V, with real-time resistance plotting and advanced diagnostic tools like Polarization Index (PI), Dielectric Absorption Ratio (DAR), and Dielectric Discharge (DD). It also features automatic discharge of the test object after measurement and includes a PC interface for data logging and analysis.

Features:

Selectable test voltages from 250 V to 5,500 V in 25 V increments.
Insulation resistance measurement up to 10 TΩ.
Diagnostic tools: Polarization Index (PI), Dielectric Absorption Ratio (DAR), Dielectric Discharge (DD).
Real-time resistance vs. time graph plotting.
Automatic discharge of test object after measurement.
Capacitance measurement and leakage current detection.
PC interface with 128 kB memory for data logging.

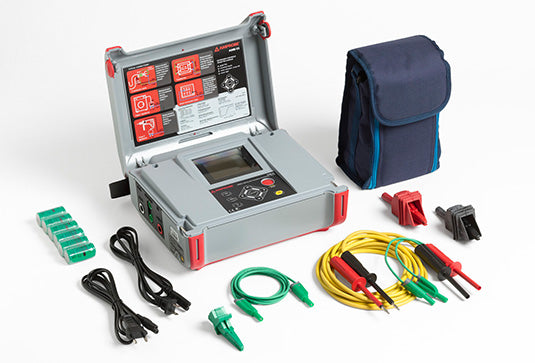

Includes RS-232 and USB cables, software, test leads, and carrying case.

Specifications:

Specification	Details
Insulation Resistance	0 Ω to 10 TΩ
Test Voltage Range	0 V to 5,500 V
Current Measurement Range	0.00 nA to 5.50 mA
Capacitance Measurement	0 nF to 50.0 µF
External Voltage Measurement	0 V to 600 V
Diagnostic Functions	PI, DAR, DD, Step Voltage Test
Memory	128 kB
PC Interface	RS-232 and USB
Power Source	Batteries (included)
Safety Rating	CAT IV 600 V

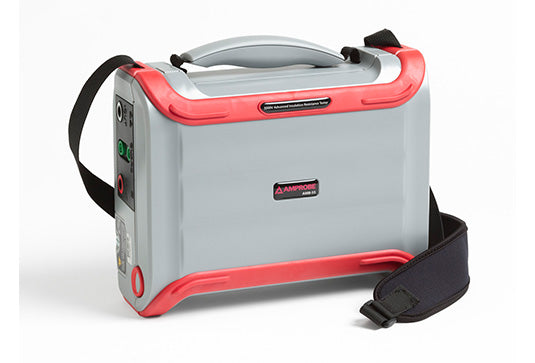

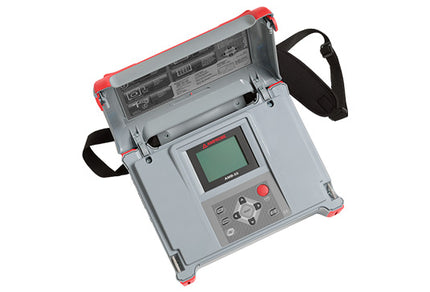

Amprobe AMB-55 Industrial High-Voltage Insulation Tester
