Description

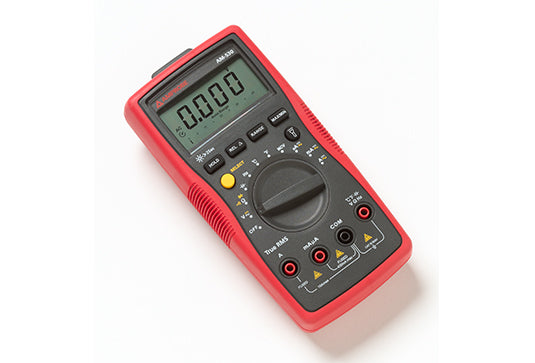

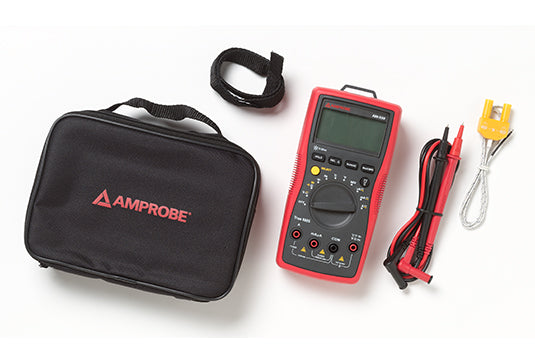

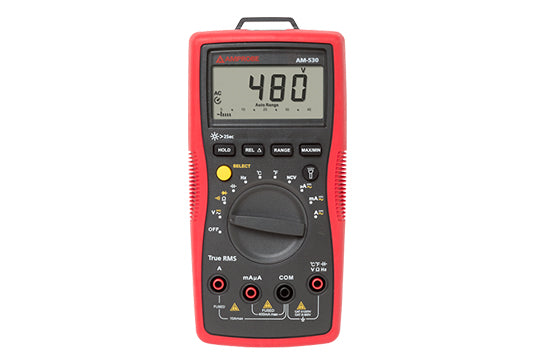

The Amprobe AM-530 True RMS Multimeter is designed for professional electrical contractors. It accurately measures AC/DC voltage, current, resistance, frequency, capacitance, and temperature. Its True RMS technology ensures precision in noisy electrical environments. The multimeter includes non-contact voltage detection for added safety, an integrated flashlight for working in dark areas, and a data hold function to freeze readings for easy analysis.

Features:

True RMS for accurate measurements in noisy environments.
Measures AC/DC voltage up to 600 V, current, resistance, frequency, capacitance, and temperature.
Non-contact voltage detection for enhanced safety.
Built-in flashlight for dark environments.
Data hold, MIN/MAX recording, and relative zero mode.
Auto and manual ranging for measurement flexibility.
CAT III 600 V safety rating.

Specifications:

Specification	Details
Voltage Measurement Range	AC/DC up to 600 V
Current Measurement Range	AC/DC up to 10 A
Resistance	Up to 40 MΩ
Frequency Range	Up to 10 MHz
Capacitance Measurement	Up to 4000 µF
Temperature Range	-40°C to 1000°C
Display	Backlit LCD with analog bar graph
Power Source	2 x 1.5 V AA batteries
Auto Power-Off	Yes
Safety Rating	CAT III 600 V
