Description

The Amprobe AC50A AC Leakage Clamp Meter is ideal for measuring low AC currents, especially leakage and fault currents in electrical systems. Its high-resolution measurement capability (up to 0.01 mA) makes it suitable for troubleshooting sensitive installations. The clamp accommodates conductors up to 30 mm, making it versatile for various applications.

Features:

Measures AC current up to 60 A.
Leakage current measurement with 0.01 mA resolution.
AC voltage measurement up to 400 V.
Resistance measurement and continuity buzzer.
Min/Max control for tracking fluctuations.
Data hold function for freezing measurement values.
Manual range selection for precise measurements.
Auto power-off function for battery conservation.
Digital LCD display with analog bargraph.

Specifications:

Specification	Details
AC Voltage Measurement	Up to 400 V
AC Current Measurement	40 mA, 400 mA, 4 A, 40 A, 60 A
Minimum Current Resolution	0.01 mA
Resistance Measurement	Up to 400 Ω
Continuity Test	Yes (with buzzer)
Clamp Opening	1.2 inches (30 mm)
Display	3¾ LCD with analog bargraph (40 segments)
Power Source	2 × 1.5 V AA (IEC LR6) batteries
Auto Power-Off	After ~30 minutes of inactivity
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Weight	320 grams
Safety Rating	CAT II 600 V, CAT III 300 V

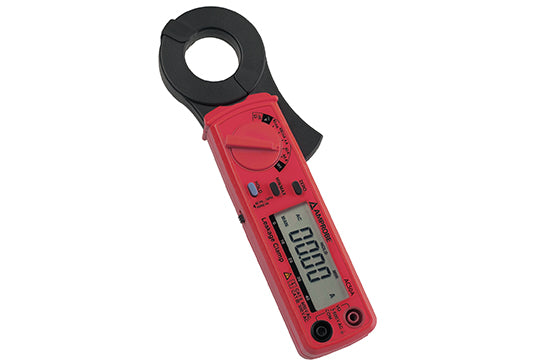

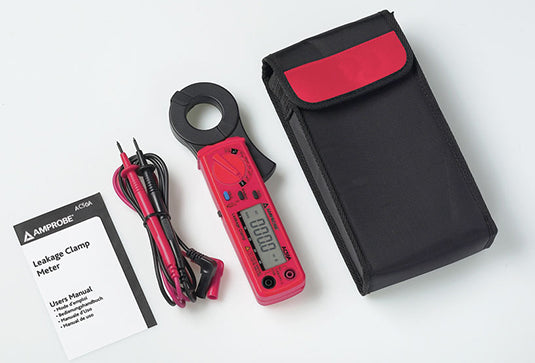

Amprobe AC50A AC Leakage Clamp Meter

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

AC leakage clamp meter with 0.01 mA resolution, designed for detecting leakage and fault currents in electrical installations. Read more

SKU: AC50A

Shipped today? Order within: Jul 14, 2026 17:00:00 +0300

Shipped today? Order within: Jul 14, 2026 17:00:00 +0300

AC leakage clamp meter with 0.01 mA resolution, designed for detecting leakage and fault currents in electrical installations.

Description

The Amprobe AC50A AC Leakage Clamp Meter is ideal for measuring low AC currents, especially leakage and fault currents in electrical systems. Its high-resolution measurement capability (up to 0.01 mA) makes it suitable for troubleshooting sensitive installations. The clamp accommodates conductors up to 30 mm, making it versatile for various applications.

Features:

Measures AC current up to 60 A.
Leakage current measurement with 0.01 mA resolution.
AC voltage measurement up to 400 V.
Resistance measurement and continuity buzzer.
Min/Max control for tracking fluctuations.
Data hold function for freezing measurement values.
Manual range selection for precise measurements.
Auto power-off function for battery conservation.
Digital LCD display with analog bargraph.

Specifications:

Specification	Details
AC Voltage Measurement	Up to 400 V
AC Current Measurement	40 mA, 400 mA, 4 A, 40 A, 60 A
Minimum Current Resolution	0.01 mA
Resistance Measurement	Up to 400 Ω
Continuity Test	Yes (with buzzer)
Clamp Opening	1.2 inches (30 mm)
Display	3¾ LCD with analog bargraph (40 segments)
Power Source	2 × 1.5 V AA (IEC LR6) batteries
Auto Power-Off	After ~30 minutes of inactivity
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Weight	320 grams
Safety Rating	CAT II 600 V, CAT III 300 V
