Description

The Adpower ADEVC3401E 30kW DC Fast EV Charger is a compact and highly efficient charging unit tailored for rapid charging of electric vehicles in commercial settings. It supports CCS1, CCS2, and CHAdeMO connectors, making it compatible with a wide range of EVs found across the Iraqi market.

Key Features:

  • Power Output: 30kW

  • Connector Types: CCS1, CCS2, CHAdeMO

  • Input Voltage: 400Vac ±10%

  • Output Voltage Range: 150Vdc - 1000Vdc

  • Max Output Current: 100A (125A for CHAdeMO)

  • Efficiency: ≥95%

  • Power Factor: ≥0.98

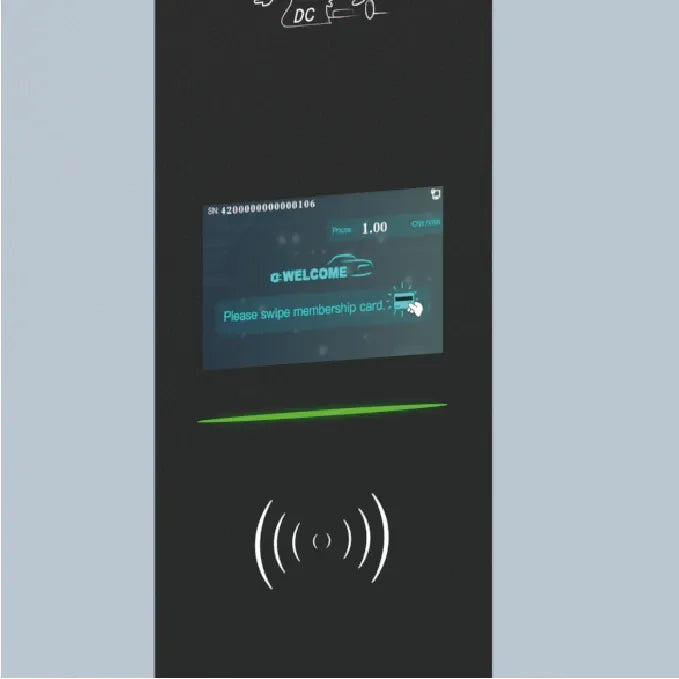

  • Display: 4.3" Color Touch Screen

  • User Authentication: RFID (ISO/IEC 14443), App/Credit Card (Customizable)

  • Communication: Ethernet, Bluetooth, Wi-Fi (4G Optional)

  • Supported Protocols: ISO 15118, DIN 70121, OCPP 1.6J (OCPP 2.x Coming Soon)

  • Protection: Over/Under Voltage, Over Current, Short Circuit, Over/Under Temperature, Lightning, Ground Fault, Surge

  • Environmental Rating: IP54, IK10

  • Cooling Method: Fan Cooling

  • Operating Temperature: -30°C to +50°C

  • Storage Temperature: -40°C to +75°C

  • Operating Humidity: Max. 93% RH, Non-Condensing

  • Operating Altitude: ≤2000m

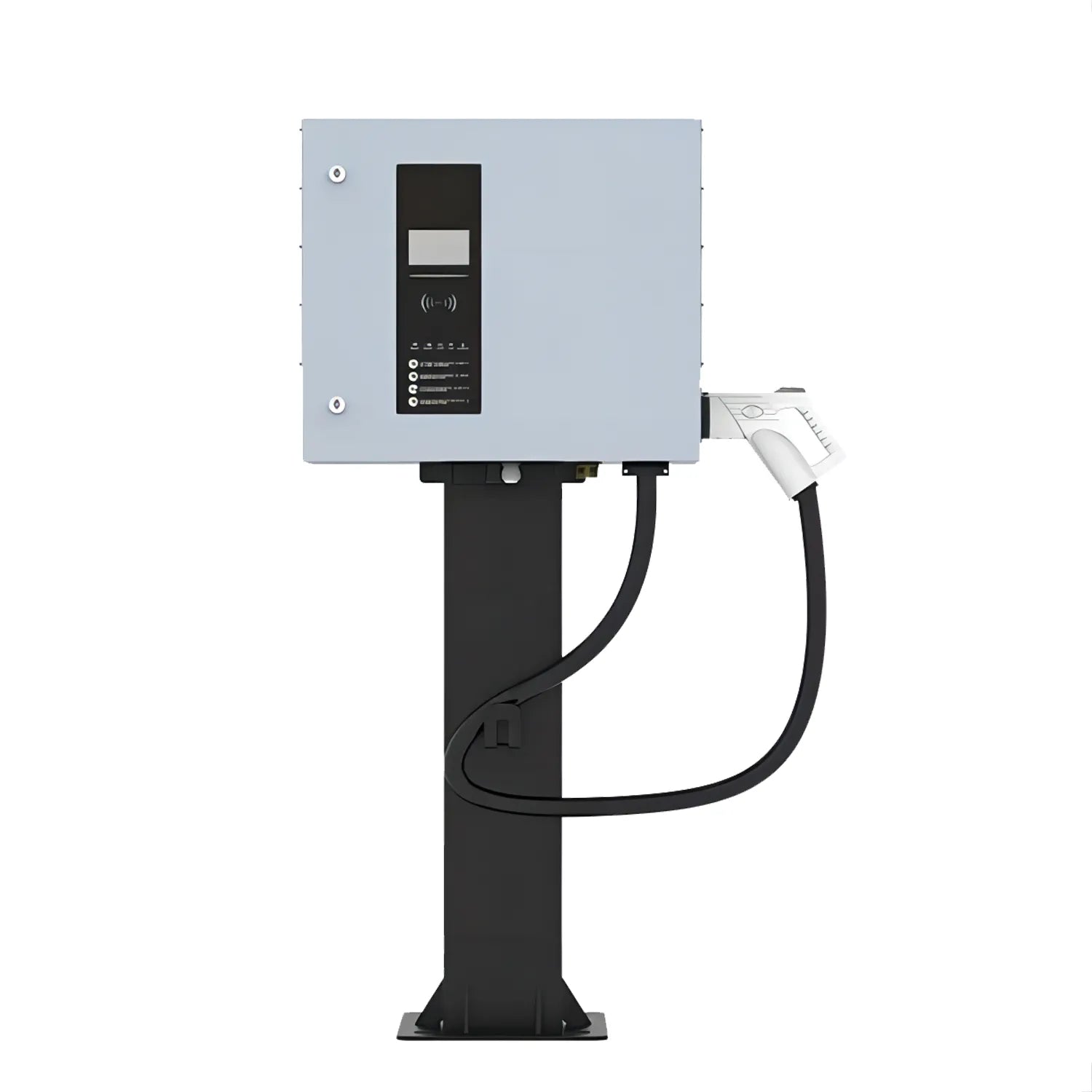

  • Mounting Options: Wall-mount and Stand-mount

  • Dimensions (W×D×H): 300mm × 154mm × 420mm

  • Weight: Net 5.9kg, Gross 7.7kg

  • Charging Cable Length: 5m (Customizable)

Ideal Applications:

  • EV bus stations

  • Fuel stations

  • Public parking garages

  • Fleet charging hubs
