Description

The AdPower ADEVC3302E is an ultra-fast DC charger designed to meet the demands of modern electric vehicle infrastructure. With a scalable power output ranging from 240kW to 480kW, it supports multiple charging standards including CCS1, CCS2, and CHAdeMO, ensuring compatibility with a wide range of EVs. Its robust design, high efficiency, and advanced features make it an ideal solution for various commercial applications.

Key Features:

  • Scalable power output: 240kW to 480kW

  • Supports CCS1, CCS2, and CHAdeMO connectors

  • High efficiency and power factor

  • Advanced dynamic load balancing

  • OCPP 1.6J compliant for backend integration

  • Robust design with IP54 and IK10 ratings

  • Multiple safety protections including over/under voltage, overcurrent, short circuit, and more

Specifications:

Specification Details
Power Output 240kW–480kW
Input Voltage 400Vac ±10%, 3-phase
Output Voltage 150Vdc–1000Vdc
Max Output Current Up to 500A
Connector Types CCS1, CCS2, CHAdeMO
Communication Ethernet, optional 4G
Protocols ISO 15118, DIN 70121, OCPP 1.6J
Protection Ratings IP54, IK10
Operating Temperature -30°C to +50°C
Storage Temperature -40°C to +75°C
Humidity Max. 95% RH, non-condensing
Altitude ≤2000m

Read more

Product form

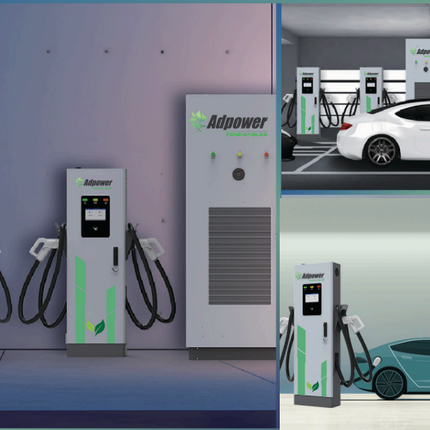

AdPower ADEVC3302E DC Fast Charger 240kW–480kW – CCS1/CCS2/CHAdeMO

Adpower

    SKU: ADEVC3302E

      Description

      The AdPower ADEVC3302E is an ultra-fast DC charger designed to meet the demands of modern electric vehicle infrastructure. With a scalable power output ranging from 240kW to 480kW, it supports multiple charging standards including CCS1, CCS2, and CHAdeMO, ensuring compatibility with a wide range of EVs. Its robust design, high efficiency, and advanced features make it an ideal solution for various commercial applications.

      Key Features:

      • Scalable power output: 240kW to 480kW

      • Supports CCS1, CCS2, and CHAdeMO connectors

      • High efficiency and power factor

      • Advanced dynamic load balancing

      • OCPP 1.6J compliant for backend integration

      • Robust design with IP54 and IK10 ratings

      • Multiple safety protections including over/under voltage, overcurrent, short circuit, and more

      Specifications:

      Specification Details
      Power Output 240kW–480kW
      Input Voltage 400Vac ±10%, 3-phase
      Output Voltage 150Vdc–1000Vdc
      Max Output Current Up to 500A
      Connector Types CCS1, CCS2, CHAdeMO
      Communication Ethernet, optional 4G
      Protocols ISO 15118, DIN 70121, OCPP 1.6J
      Protection Ratings IP54, IK10
      Operating Temperature -30°C to +50°C
      Storage Temperature -40°C to +75°C
      Humidity Max. 95% RH, non-condensing
      Altitude ≤2000m

      Read more
