Description

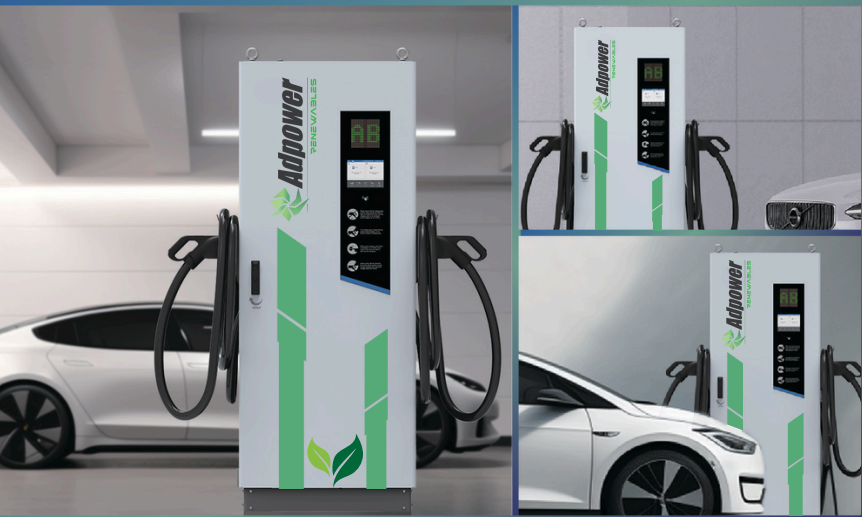

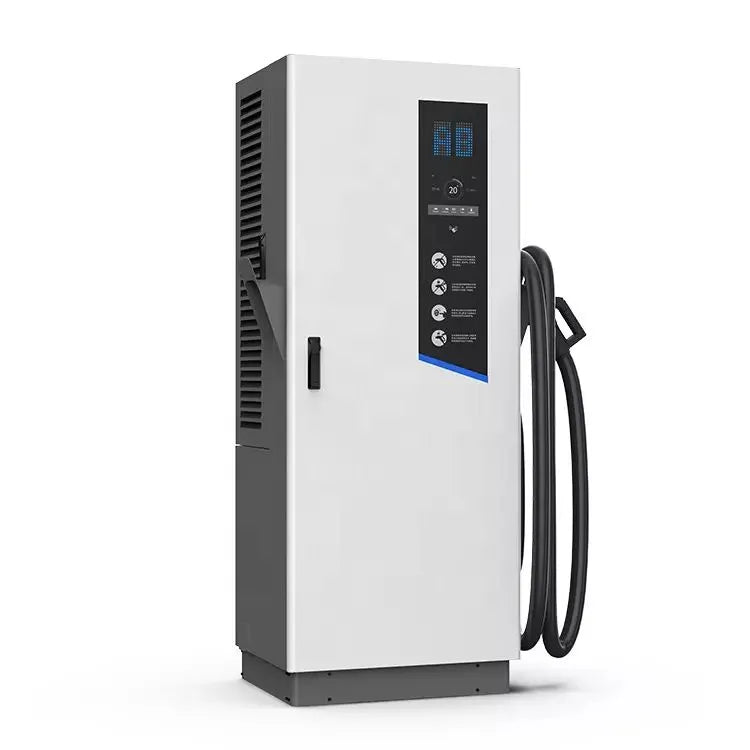

The AdPower ADEVC3108E is an ultra-fast DC charger designed to meet the demands of modern electric vehicle infrastructure. With a scalable power output ranging from 120kW to 240kW, it supports multiple charging standards including CCS1, CCS2, and CHAdeMO, ensuring compatibility with a wide range of EVs. Its robust design, high efficiency, and advanced features make it an ideal solution for various commercial applications.

Key Features:

  • Scalable power output: 120kW to 240kW

  • Supports CCS1, CCS2, and CHAdeMO connectors

  • High efficiency (>95%) and power factor (≥0.98)

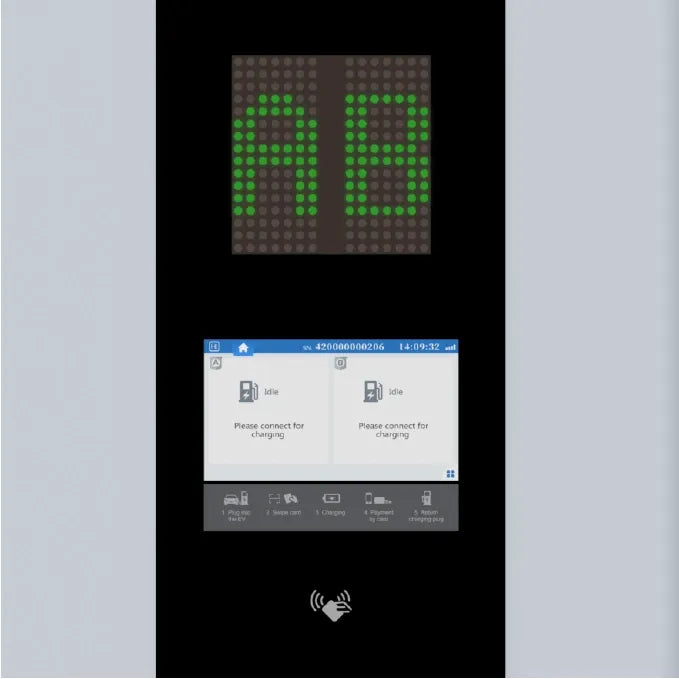

  • 7-inch color touch screen interface

  • Smart charging with dynamic load balancing

  • OCPP 1.6J compliant for backend integration

  • Robust design with IP54 and IK10 ratings

  • Multiple safety protections including over/under voltage, overcurrent, short circuit, and more

Specifications:

Specification Details
Power Output 120kW–240kW
Input Voltage 400Vac ±10%, 3-phase
Output Voltage 150Vdc–1000Vdc
Max Output Current 200A (250A optional)
Efficiency >95%
Power Factor ≥0.98
Connector Types CCS1, CCS2, CHAdeMO
Display 7" color touch screen
User Authentication RFID, App, Credit Card (customizable)
Communication Ethernet, optional 4G
Protocols ISO 15118, DIN 70121, OCPP 1.6J
Protection Ratings IP54, IK10
Operating Temperature -30°C to +50°C
Storage Temperature -40°C to +75°C
Humidity Max. 93% RH, non-condensing
Altitude ≤2000m
Dimensions (W×D×H) 750mm × 750mm × 1900mm
Weight Net: 411kg; Gross: 428kg
Product form

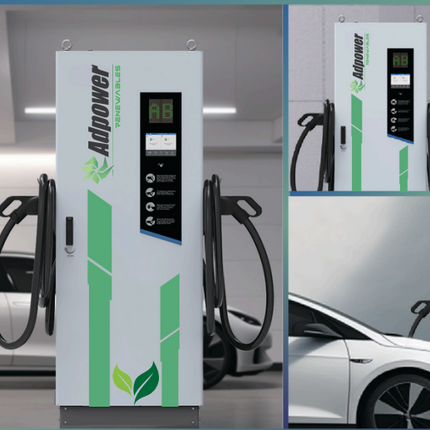

AdPower ADEVC3108E DC Fast Charger 120kW–240kW

    SKU: ADEVC3108E

      Description

      The AdPower ADEVC3108E is an ultra-fast DC charger designed to meet the demands of modern electric vehicle infrastructure. With a scalable power output ranging from 120kW to 240kW, it supports multiple charging standards including CCS1, CCS2, and CHAdeMO, ensuring compatibility with a wide range of EVs. Its robust design, high efficiency, and advanced features make it an ideal solution for various commercial applications.

      Key Features:

      • Scalable power output: 120kW to 240kW

      • Supports CCS1, CCS2, and CHAdeMO connectors

      • High efficiency (>95%) and power factor (≥0.98)

      • 7-inch color touch screen interface

      • Smart charging with dynamic load balancing

      • OCPP 1.6J compliant for backend integration

      • Robust design with IP54 and IK10 ratings

      • Multiple safety protections including over/under voltage, overcurrent, short circuit, and more

      Specifications:

      Specification Details
      Power Output 120kW–240kW
      Input Voltage 400Vac ±10%, 3-phase
      Output Voltage 150Vdc–1000Vdc
      Max Output Current 200A (250A optional)
      Efficiency >95%
      Power Factor ≥0.98
      Connector Types CCS1, CCS2, CHAdeMO
      Display 7" color touch screen
      User Authentication RFID, App, Credit Card (customizable)
      Communication Ethernet, optional 4G
      Protocols ISO 15118, DIN 70121, OCPP 1.6J
      Protection Ratings IP54, IK10
      Operating Temperature -30°C to +50°C
      Storage Temperature -40°C to +75°C
      Humidity Max. 93% RH, non-condensing
      Altitude ≤2000m
      Dimensions (W×D×H) 750mm × 750mm × 1900mm
      Weight Net: 411kg; Gross: 428kg
