Description

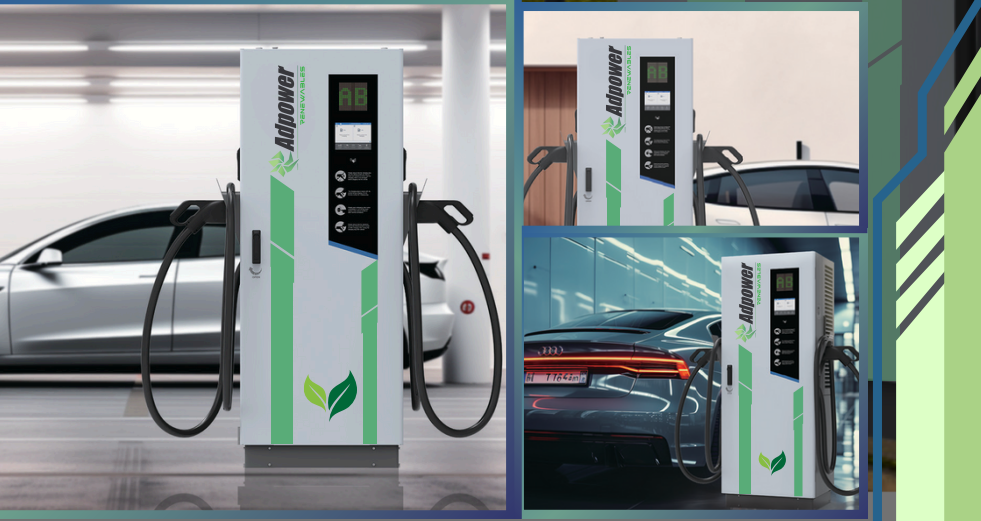

The AdPower ADEVC3107E is a versatile DC fast charger designed to meet the demands of modern electric vehicle infrastructure. With a scalable power output ranging from 60kW to 160kW, it supports multiple charging standards including CCS1, CCS2, and CHAdeMO, ensuring compatibility with a wide range of EVs. Its robust design, high efficiency, and advanced features make it an ideal solution for various commercial applications.

Key Features:

Scalable power output: 60kW to 160kW
Supports CCS1, CCS2, and CHAdeMO connectors
High efficiency (>95%) and power factor (≥0.98)

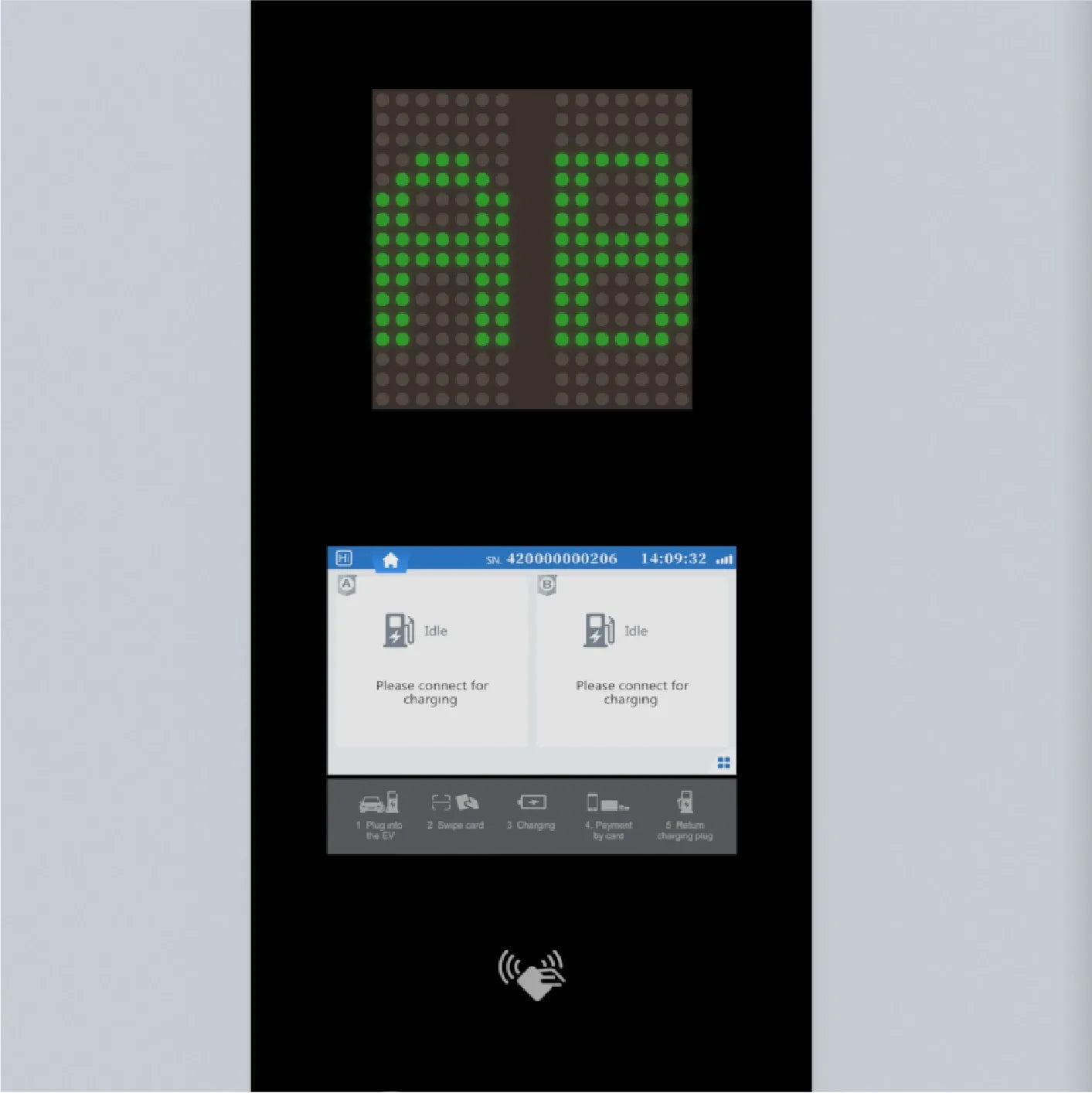

7-inch color touch screen interface
Smart charging with dynamic load balancing
OCPP 1.6J compliant for backend integration
Robust design with IP54 and IK10 ratings
Multiple safety protections including over/under voltage, overcurrent, short circuit, and more

Specifications:

Specification	Details
Power Output	60kW–160kW
Input Voltage	400Vac ±10%, 3-phase
Output Voltage	150Vdc–1000Vdc
Max Output Current	200A (250A optional)
Efficiency	>95%
Power Factor	≥0.98
Connector Types	CCS1, CCS2, CHAdeMO
Display	7" color touch screen
User Authentication	RFID, App, Credit Card (customizable)
Communication	Ethernet, optional 4G
Protocols	ISO 15118, DIN 70121, OCPP 1.6J
Protection Ratings	IP54, IK10
Operating Temperature	-30°C to +50°C
Storage Temperature	-40°C to +75°C
Humidity	Max. 93% RH, non-condensing
Altitude	≤2000m
Dimensions (W×D×H)	750mm × 750mm × 1900mm
Weight	Net: 411kg; Gross: 428kg

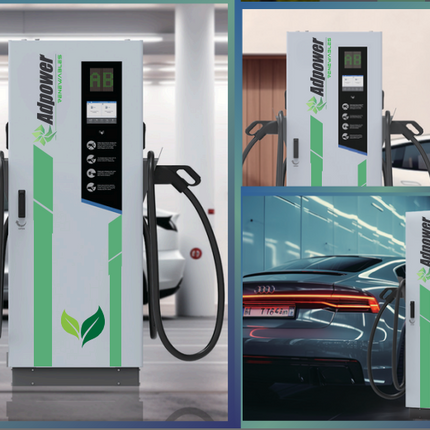

AdPower ADEVC3107E DC Fast Charger 60kW–160kW
