Power Output: 60kW (scalable up to 160kW)
-
Connector Types: CCS1, CCS2, CHAdeMO
-
Input Voltage: 400Vac ±10%
-
Output Voltage Range: 150 – 1000Vdc
-
Max Output Current: 200A (250A Optional)
-
Efficiency: ≥95%
-
Power Factor: ≥0.98
-

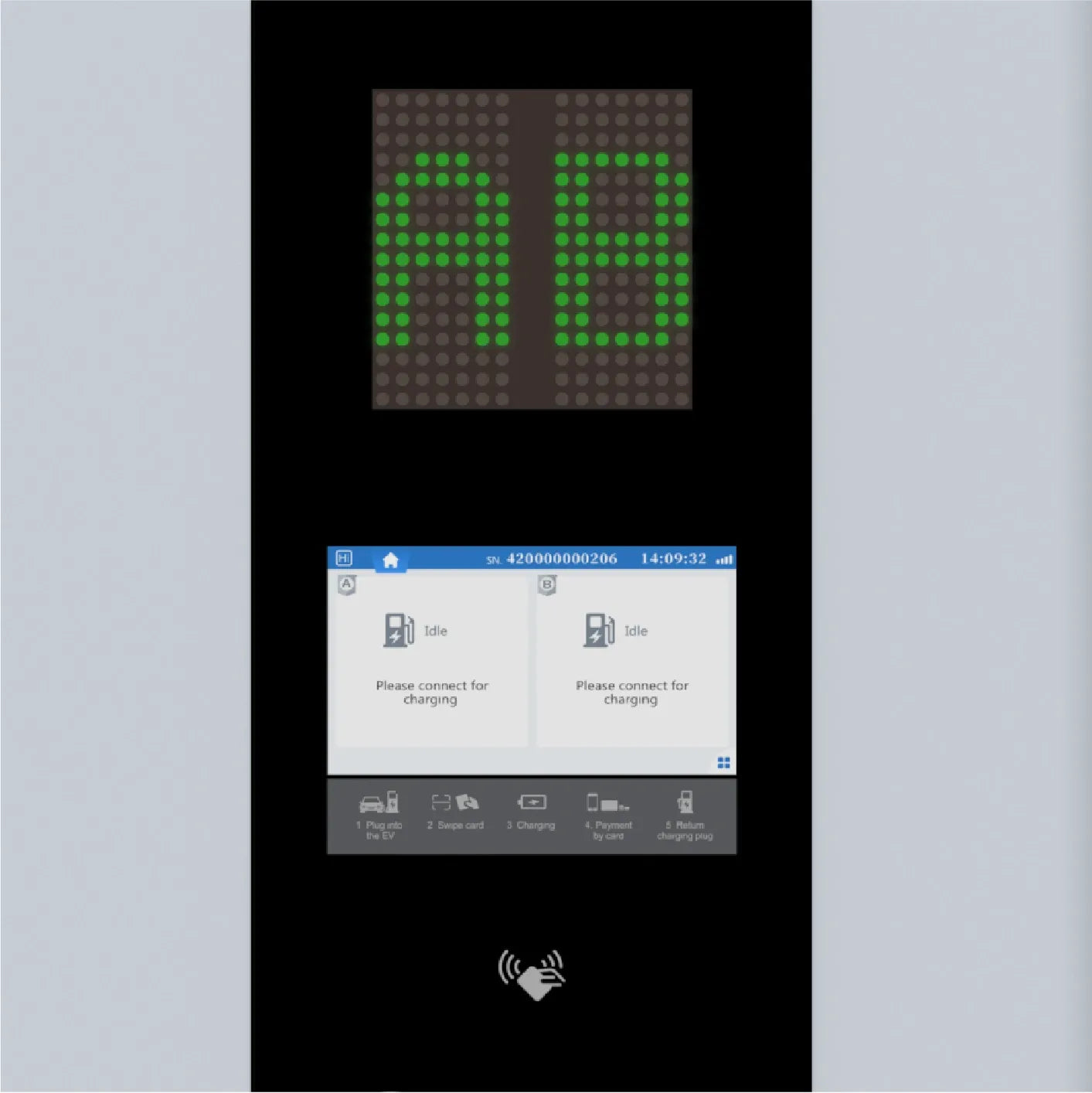

Display: 7" Color Touch Screen (12" Customizable)
-
User Authentication: RFID (ISO/IEC 14443), App, or Credit Card (Customizable)
-
Communication: Ethernet (Optional 4G)
-
Supported Protocols: ISO 15118, DIN 70121, OCPP 1.6J (OCPP 2.x coming soon)
-
Protection: Over/under voltage, over current, short circuit, thermal anomalies, lightning, ground fault, surge
-
Environmental Protection: IP54, IK10 impact rating
-
Cooling Method: Fan-cooled
-
Operating Temperature: -30°C to +50°C
-
Storage Temperature: -40°C to +75°C
-
Operating Humidity: Max. 93% RH, non-condensing
-
Operating Altitude: ≤2000m
-
Mounting: Free-standing
-
Dimensions: 700 × 550 × 1800 mm
-
Weight: Net 363 kg, Gross 380 kg
-

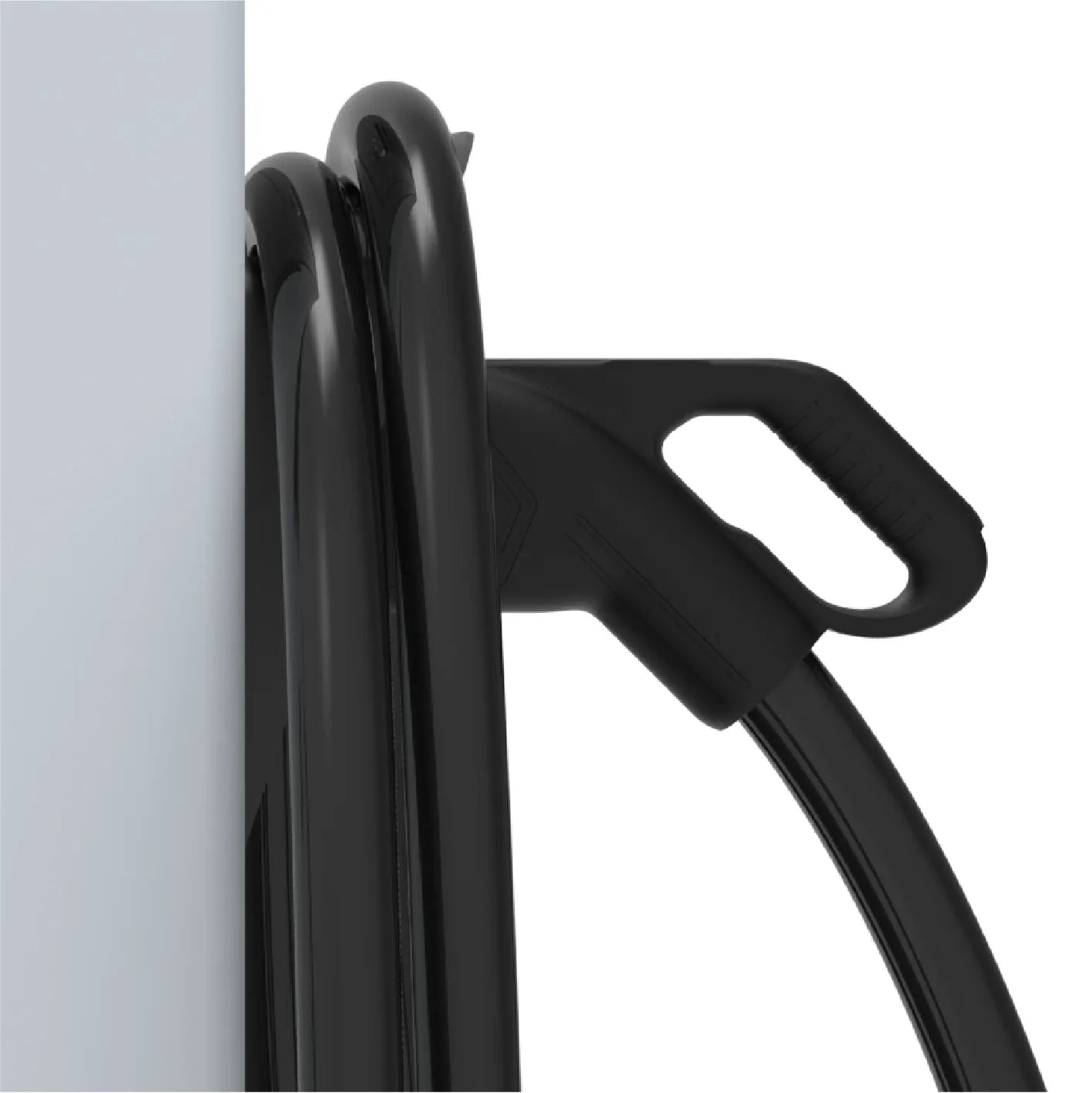

Charging Cable Length: 5 meters (customizable)
