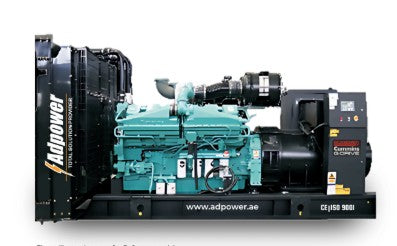

The Adpower 1000kVA Diesel Generator QST30G4 is a powerful industrial generator engineered to deliver dependable electricity for both continuous (prime) and emergency (standby) use. Equipped with the robust Cummins QST30G4 12-cylinder, 4-stroke diesel engine, this unit operates at 50Hz and supplies 800kW (1000kVA) of clean and consistent power.

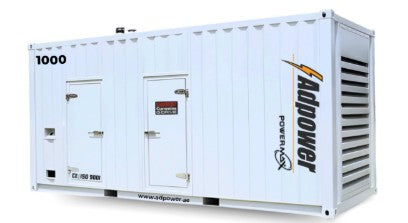

Ideal for factories, data centers, construction sites, and other critical facilities, the generator features a self-excited, brushless alternator with IP23 protection and H class insulation. An electronic governor ensures precise load control, while the system is cooled with a radiator and pusher fan for efficient thermal management. The generator is available in both open and silent canopy configurations, with the silent version offering stackable design and excellent noise attenuation.
All components meet ISO 8528-1, ISO 9001, and CE standards, ensuring compliance with global industrial safety and performance regulations.
Features:
-
Cummins QST30G4 12-cylinder diesel engine
-
1000kVA / 800kW power rating at 50Hz
-
Electronic governor for optimal performance
-
Water-cooled engine with radiator and pusher fan
-
IP23-rated alternator with H class insulation
-
Flexible disc coupling system for durability
-
Stackable silent canopy with 20 dBA attenuation (optional)
-
Steel chassis with integrated fuel tank
-
Emergency stop and optional fuel gauge
-
ISO 8528-1, ISO 9001, CE certified
Specifications:
| Specification |
Detail |
| Rated Power |
1000kVA / 800kW |
| Engine Model |
Cummins QST30-G4 |
| Engine Type |
4-stroke, 12-cylinder, water-cooled |
| Fuel Consumption (ESP 100%) |
222.2 L/h |
| Alternator Type |
Self-excited, brushless |
| Alternator Protection |
IP23 |
| Insulation Class |
H Class |
| Frequency |
50Hz |
| Power Factor |
0.8 |
| Voltage Options |
230/400V, 380/220V, 415/240V, 440/220V |
| Cooling System |
Radiator with pusher fan |
| Governor |
Electronic |
| Starting System |
12V DC with 2 batteries |
| Dimensions (Open Version) |
4900 × 2200 × 2110 mm |
| Dimensions (Silent Version) |
12000 × 2320 × 2900 mm |
| Net Weight |
6360 kg |
| Canopy |
Stackable, sound-attenuated |
| Compliance Standards |
ISO 8528-1, ISO 9001, CE |
