Description

Reliable 2P RCCB with 80A rating, 300mA sensitivity, and enhanced safety features.

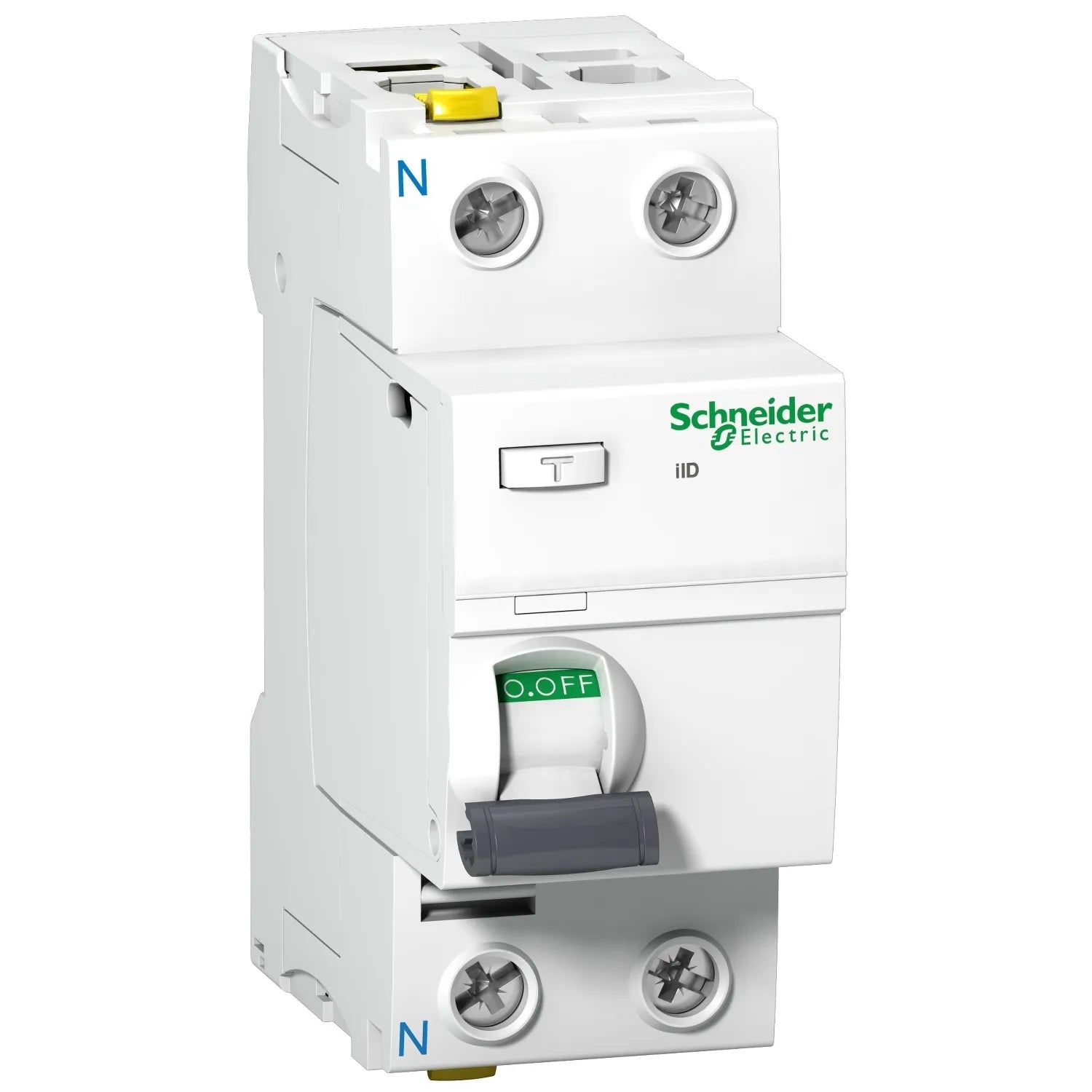

The Acti9 IID RCCB by Schneider Electric is a modular and reliable residual current circuit breaker that ensures safety by sensing and disconnecting in case of earth faults. This 2-pole device, rated at 80A with a 300mA sensitivity, is designed to protect against indirect contact electrical shocks and fire hazards. It features a unique Visitrip indicator for quick fault identification and a VisiSafe window for visual confirmation of disconnection, enhancing maintenance safety. Compliant with EN/IEC 61008-1, it supports a breaking and making capacity of 1500A and sustains a short circuit current up to 10kA. Designed for DIN rail mounting, it operates efficiently between -5¡C and 60¡C, offering robust protection with IP20 rating, extendable to IP40 when enclosed. The Acti9 IID is engineered for operational voltage between 220V and 240V, with a rated impulse withstand voltage of 6kV, making it a versatile choice for various electrical protection needs.

Key Features

  • 80A rated current with 300mA sensitivity
  • Unique Visitrip indicator for quick fault identification
  • VisiSafe window for visual disconnection confirmation
  • Complies with EN/IEC 61008-1 standard
  • DIN rail mountable for easy installation

Technical Specifications

Specification Value
MaterialPlastic
DimensionsW: 36mm x H: 91mm x D: 73mm
Weight0.21 kg
Power220-240 V AC, 50/60 Hz
Warranty18 months

Read more

Product form

Acti9 IID RCCB 2P 80A 300mA

Schneider Electric

SKU: A9Z15280

16,250 IQD

        Description

        Reliable 2P RCCB with 80A rating, 300mA sensitivity, and enhanced safety features.
        The Acti9 IID RCCB by Schneider Electric is a modular and reliable residual current circuit breaker that ensures safety by sensing and disconnecting in case of earth faults. This 2-pole device, rated at 80A with a 300mA sensitivity, is designed to protect against indirect contact electrical shocks and fire hazards. It features a unique Visitrip indicator for quick fault identification and a VisiSafe window for visual confirmation of disconnection, enhancing maintenance safety. Compliant with EN/IEC 61008-1, it supports a breaking and making capacity of 1500A and sustains a short circuit current up to 10kA. Designed for DIN rail mounting, it operates efficiently between -5¡C and 60¡C, offering robust protection with IP20 rating, extendable to IP40 when enclosed. The Acti9 IID is engineered for operational voltage between 220V and 240V, with a rated impulse withstand voltage of 6kV, making it a versatile choice for various electrical protection needs.

        Key Features

        • 80A rated current with 300mA sensitivity
        • Unique Visitrip indicator for quick fault identification
        • VisiSafe window for visual disconnection confirmation
        • Complies with EN/IEC 61008-1 standard
        • DIN rail mountable for easy installation

        Technical Specifications

        Specification Value
        MaterialPlastic
        DimensionsW: 36mm x H: 91mm x D: 73mm
        Weight0.21 kg
        Power220-240 V AC, 50/60 Hz
        Warranty18 months

        Read more
