Description

High-performance 3P 20A circuit breaker with unique VisiTrip and VisiSafe features.
The Schneider Electric Acti9 iC60H 3P 20A C Miniature Circuit Breaker is a high-performance device designed for both industrial and residential applications. This multistandard low voltage miniature circuit breaker features double tunnel terminals and is equipped with a unique VisiTrip indicator to facilitate easy identification of faulty circuits. With a rated current of 20A and a C tripping curve, it ensures effective protection against short circuits and overloads. Built to conform to EN/IEC 60947-2 and EN/IEC 60898-1 standards, the Acti9 iC60H offers robust protection with a breaking capacity of up to 30kA at 220VAC to 240VAC. The device is designed with a VisiSafe green strip, guaranteeing the physical opening of contacts for secure downstream maintenance. Its fast closing mechanism enhances service life, boasting an electrical endurance of up to 10,000 cycles and a mechanical endurance of up to 20,000 cycles. The miniature circuit breaker is suitable for DIN rail mounting and features a width of 6 pitches of 9mm. It operates efficiently across a wide temperature range from -35¡C to 70¡C, with a storage temperature capability extending from -40¡C to 85¡C. Its IP20 degree of protection ensures safety on terminals, making it a reliable choice for electrical protection needs.

Key Features

  • 3P circuit breaker with 20A rated current
  • Conforms to EN/IEC 60947-2 and EN/IEC 60898-1 standards
  • VisiTrip indicator for easy fault identification
  • VisiSafe green strip for secure maintenance
  • Fast closing mechanism for enhanced service life

Technical Specifications

Specification Value
MaterialPlastic
Dimensions54mm x 85mm x 78.5mm
Weight0.375 kg
Power20A, 30kA breaking capacity
Warranty18 months

Read more

Product form

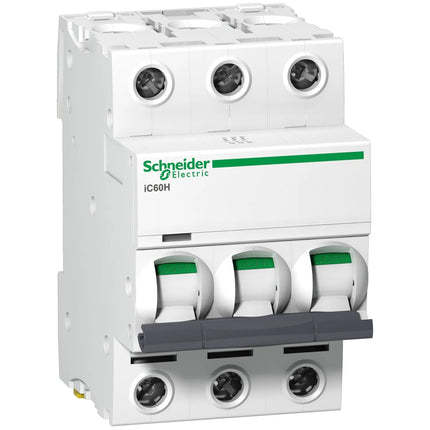

Schneider Acti9 iC60H 3P 20A Circuit Breaker

Schneider Electric

SKU: a9f54320

22,000 IQD

  • Shipped today? Order within: Mar 13, 2026 17:00:00 +0300
    • Shipped today? Order within: Mar 13, 2026 17:00:00 +0300

    Description

    High-performance 3P 20A circuit breaker with unique VisiTrip and VisiSafe features.
    The Schneider Electric Acti9 iC60H 3P 20A C Miniature Circuit Breaker is a high-performance device designed for both industrial and residential applications. This multistandard low voltage miniature circuit breaker features double tunnel terminals and is equipped with a unique VisiTrip indicator to facilitate easy identification of faulty circuits. With a rated current of 20A and a C tripping curve, it ensures effective protection against short circuits and overloads. Built to conform to EN/IEC 60947-2 and EN/IEC 60898-1 standards, the Acti9 iC60H offers robust protection with a breaking capacity of up to 30kA at 220VAC to 240VAC. The device is designed with a VisiSafe green strip, guaranteeing the physical opening of contacts for secure downstream maintenance. Its fast closing mechanism enhances service life, boasting an electrical endurance of up to 10,000 cycles and a mechanical endurance of up to 20,000 cycles. The miniature circuit breaker is suitable for DIN rail mounting and features a width of 6 pitches of 9mm. It operates efficiently across a wide temperature range from -35¡C to 70¡C, with a storage temperature capability extending from -40¡C to 85¡C. Its IP20 degree of protection ensures safety on terminals, making it a reliable choice for electrical protection needs.

    Key Features

    • 3P circuit breaker with 20A rated current
    • Conforms to EN/IEC 60947-2 and EN/IEC 60898-1 standards
    • VisiTrip indicator for easy fault identification
    • VisiSafe green strip for secure maintenance
    • Fast closing mechanism for enhanced service life

    Technical Specifications

    Specification Value
    MaterialPlastic
    Dimensions54mm x 85mm x 78.5mm
    Weight0.375 kg
    Power20A, 30kA breaking capacity
    Warranty18 months
