Description

Automates lighting based on ambient light with adjustable range.

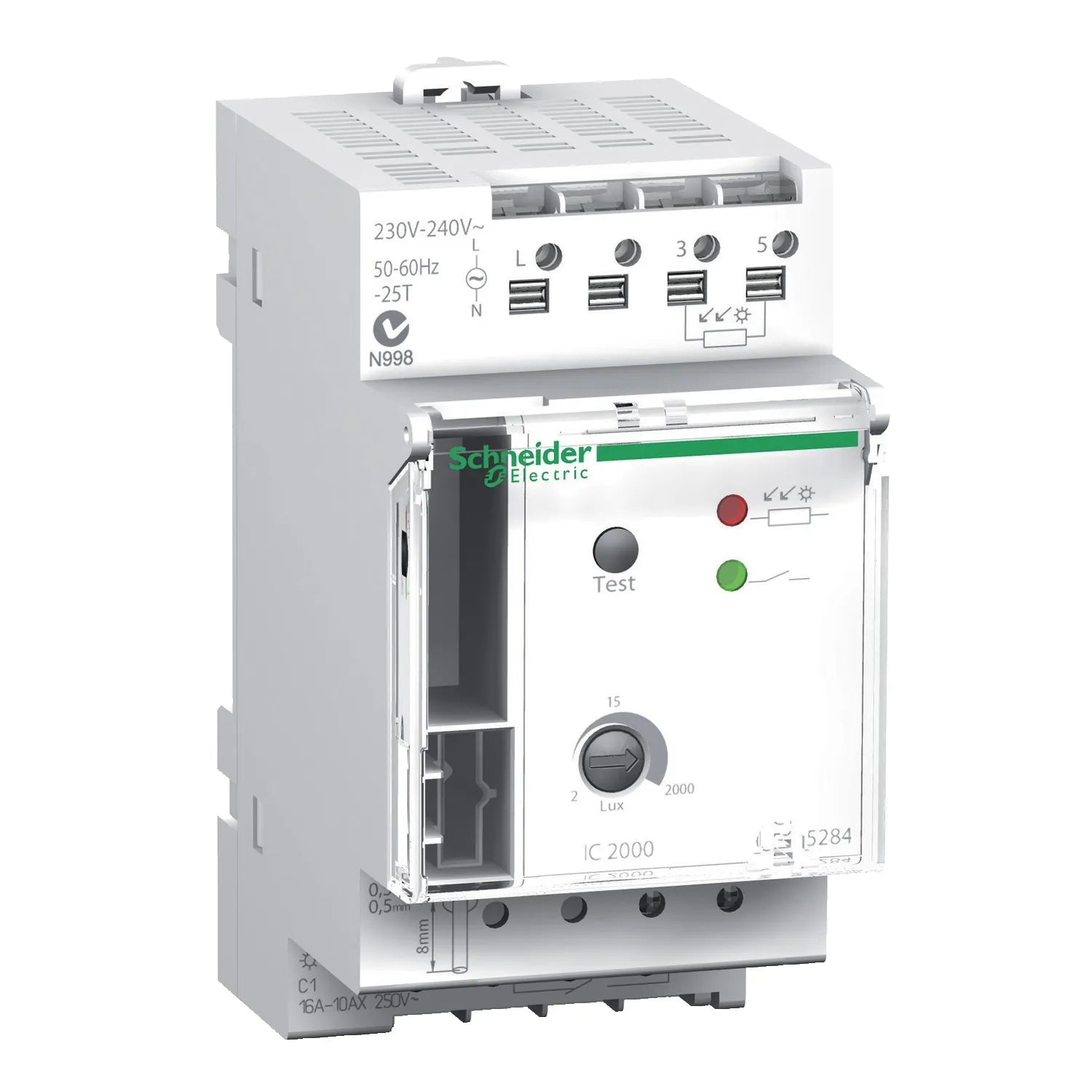

The Acti9 IC2000 twilight switch from Schneider Electric is designed to automate lighting control based on ambient light levels. It features an adjustable light intensity range from 2 to 2000 lux, making it ideal for small commercial and residential applications. The device ensures energy efficiency by turning lights on or off according to the natural light availability, reducing electricity consumption when natural light is sufficient. This model offers robust performance with a maximum switching current of 16 A at 250 V AC and is classified under electrical insulation Class II. It is equipped with a status LED to indicate when the threshold is reached, ensuring user awareness of its operational status. Additionally, the IC2000 is built to withstand varied environmental conditions with an operational temperature range of -25 to 50 ¡C and protection against dust and touch by the IP20 B rating.

Key Features

  • Adjustable light intensity: 2 to 2000 lux
  • Max switching current: 16 A at 250 V AC
  • Class II electrical insulation
  • IP20 B protection against dust
  • Operational temperature: -25 to 50 ¡C

Technical Specifications

Specification Value
MaterialHigh-quality plastic
Dimensions85 x 45 x 65 mm
Weight280 g
Power230 V AC +10% -15% at 50/60 Hz
Warranty2 years

Read more

Product form

Acti9 IC2000 Twilight Switch 22000 Lux

Schneider Electric

SKU: CCT15284

95,000 IQD

    Description

    Automates lighting based on ambient light with adjustable range.
    The Acti9 IC2000 twilight switch from Schneider Electric is designed to automate lighting control based on ambient light levels. It features an adjustable light intensity range from 2 to 2000 lux, making it ideal for small commercial and residential applications. The device ensures energy efficiency by turning lights on or off according to the natural light availability, reducing electricity consumption when natural light is sufficient. This model offers robust performance with a maximum switching current of 16 A at 250 V AC and is classified under electrical insulation Class II. It is equipped with a status LED to indicate when the threshold is reached, ensuring user awareness of its operational status. Additionally, the IC2000 is built to withstand varied environmental conditions with an operational temperature range of -25 to 50 ¡C and protection against dust and touch by the IP20 B rating.

    Key Features

    • Adjustable light intensity: 2 to 2000 lux
    • Max switching current: 16 A at 250 V AC
    • Class II electrical insulation
    • IP20 B protection against dust
    • Operational temperature: -25 to 50 ¡C

    Technical Specifications

    Specification Value
    MaterialHigh-quality plastic
    Dimensions85 x 45 x 65 mm
    Weight280 g
    Power230 V AC +10% -15% at 50/60 Hz
    Warranty2 years
