Description

Reliable 2-pole RCCB with 80A rating and 300mA sensitivity for enhanced electrical safety.

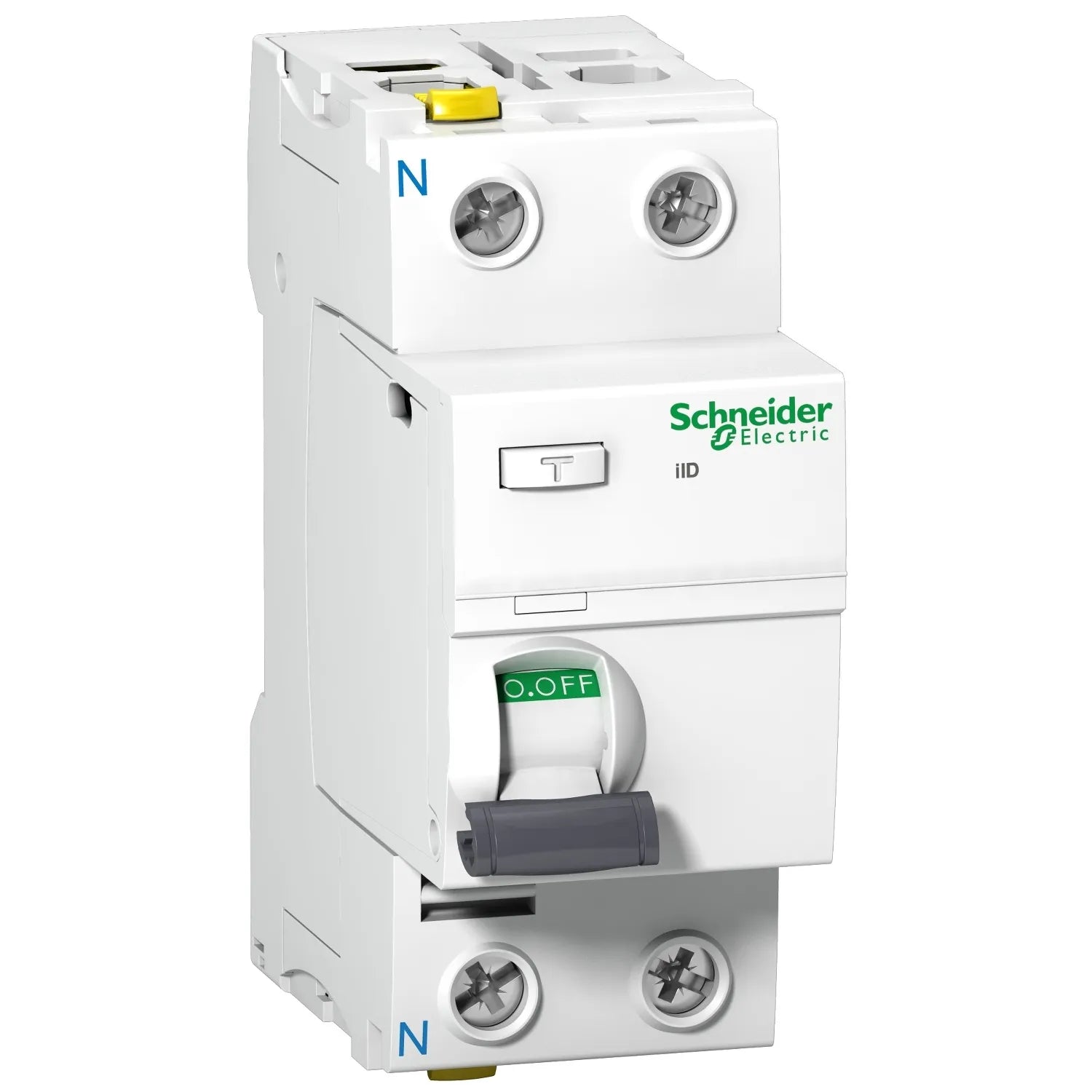

The Acti 9 iID RCCB is a reliable and modular residual current circuit breaker designed for safe operation. It is a 2-pole device with a rated current of 80A and a sensitivity of 300mA, ensuring protection against electrical shock and fire hazards. This device is compliant with the EN/IEC 61008-1 standard, providing efficient disconnection of circuits in case of an earth fault. Its unique Visitrip indicator allows quick identification of faults, reducing downtime and maintenance efforts. Additionally, the VisiSafe window provides a clear indication of the full opening of poles, facilitating downstream maintenance. With a mechanical endurance of up to 20,000 cycles and electrical endurance of up to 10,000 cycles, this RCCB is built for durability. It operates within a voltage range of 220VAC to 240VAC, with a rated impulse withstand voltage of 6kV. The Acti 9 iID is designed for easy DIN rail mounting and is constructed with a sleek white finish, measuring 36mm in width, 91mm in height, and 73mm in depth.

Key Features

  • Modular and reliable RCCB
  • 2-pole design with 80A rating
  • 300mA sensitivity for safety
  • Compliant with EN/IEC 61008-1
  • Visitrip and VisiSafe indicators

Technical Specifications

Specification Value
MaterialPlastic
Dimensions36mm x 91mm x 73mm
Weight12.810 kg
Power220VAC to 240VAC
Warranty18 months

Read more

Product form

Acti 9 iID RCCB 2P 80A 300mA

Schneider Electric

SKU: A9Z24280

33,000 IQD

        Description

        Reliable 2-pole RCCB with 80A rating and 300mA sensitivity for enhanced electrical safety.
        The Acti 9 iID RCCB is a reliable and modular residual current circuit breaker designed for safe operation. It is a 2-pole device with a rated current of 80A and a sensitivity of 300mA, ensuring protection against electrical shock and fire hazards. This device is compliant with the EN/IEC 61008-1 standard, providing efficient disconnection of circuits in case of an earth fault. Its unique Visitrip indicator allows quick identification of faults, reducing downtime and maintenance efforts. Additionally, the VisiSafe window provides a clear indication of the full opening of poles, facilitating downstream maintenance. With a mechanical endurance of up to 20,000 cycles and electrical endurance of up to 10,000 cycles, this RCCB is built for durability. It operates within a voltage range of 220VAC to 240VAC, with a rated impulse withstand voltage of 6kV. The Acti 9 iID is designed for easy DIN rail mounting and is constructed with a sleek white finish, measuring 36mm in width, 91mm in height, and 73mm in depth.

        Key Features

        • Modular and reliable RCCB
        • 2-pole design with 80A rating
        • 300mA sensitivity for safety
        • Compliant with EN/IEC 61008-1
        • Visitrip and VisiSafe indicators

        Technical Specifications

        Specification Value
        MaterialPlastic
        Dimensions36mm x 91mm x 73mm
        Weight12.810 kg
        Power220VAC to 240VAC
        Warranty18 months
