Reliable circuit breaker with solid-state release for optimal protection.

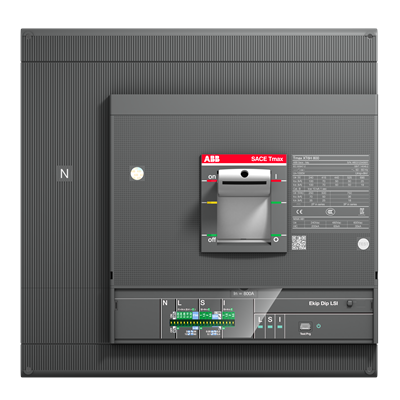

The ABB XT6N 1000 Ekip Dip Circuit Breaker is a robust solution designed for versatile applications in today's demanding electrical environments. Its solid-state release mechanism ensures precise protection against overload and short circuits, providing reliability and safety in power distribution systems. With a fixed four-pole configuration, the breaker is equipped with front terminals, making installation straightforward and efficient. The Ekip Dip LS/I variant offers advanced features for enhanced operational flexibility and control, catering to both industrial and commercial needs.
This circuit breaker is optimized for high-performance, with a rated operational voltage of 690 V AC and a rated insulation voltage of 1000 V, ensuring it can handle significant electrical loads. Its compact design, with dimensions of 268 mm in height, 280 mm in width, and 103.5 mm in depth, allows for easy integration into various setups without compromising on space. Weighing 12 kg, the XT6N 1000 is built to last, providing long-term service with minimal maintenance. Ideal for protecting transformers, generators, and installations, this circuit breaker is a critical component in safeguarding electrical systems from potential faults.
Key Features
- Solid-state release mechanism
- Four-pole fixed configuration
- Front terminal access
- High rated operational voltage
- Compact and robust design
Technical Specifications
| Specification |
Value |
| Material | High-grade electrical components |
| Dimensions | 268 mm x 280 mm x 103.5 mm |
| Weight | 12 kg |
| Power | 690 V AC, 1000 V insulation |
| Warranty | 2 years standard warranty |
