Description

Economic electromechanical relay for reliable motor protection with multiple reset options.

The TF42-16 thermal overload relay is an economic electromechanical protection device designed for the main circuit. It ensures reliable and fast protection for motors in the event of overload or phase failure. The relay features a trip class 10 mechanism with temperature compensation, trip contact (NC), signal contact (NO), and options for automatic or manual reset. Its trip-free mechanism, STOP function, and trip indication make it a versatile choice for motor protection. Designed to connect directly with block contactors, it also offers single mounting kits as optional accessories, enhancing its utility in varied industrial applications.

Key Features

Reliable motor protection against overload
Trip class 10 with temperature compensation
Automatic or manual reset options
Trip-free mechanism and STOP function
Direct connection with block contactors

Technical Specifications

Specification	Value
Material	Plastic and metal
Dimensions	88.3 mm x 45 mm x 70.5 mm
Weight	0.13 kg
Power	Rated operational voltage
Warranty	1 year standard warranty

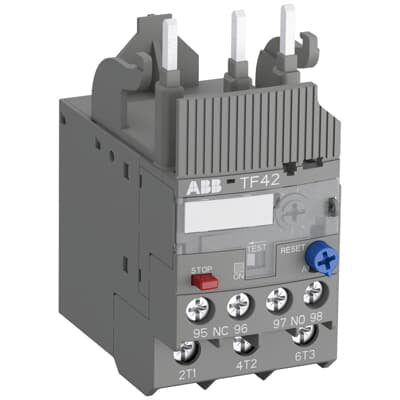

ABB TF42-16 Thermal Overload Relay

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

مرحل كهروميكانيكي اقتصادي لحماية المحركات بموثوقية مع خيارات إعادة ضبط متعددة. Read more

SKU: 1SAZ721201R1047

مرحل كهروميكانيكي اقتصادي لحماية المحركات بموثوقية مع خيارات إعادة ضبط متعددة.

Description

Economic electromechanical relay for reliable motor protection with multiple reset options.

The TF42-16 thermal overload relay is an economic electromechanical protection device designed for the main circuit. It ensures reliable and fast protection for motors in the event of overload or phase failure. The relay features a trip class 10 mechanism with temperature compensation, trip contact (NC), signal contact (NO), and options for automatic or manual reset. Its trip-free mechanism, STOP function, and trip indication make it a versatile choice for motor protection. Designed to connect directly with block contactors, it also offers single mounting kits as optional accessories, enhancing its utility in varied industrial applications.

Key Features

Reliable motor protection against overload
Trip class 10 with temperature compensation
Automatic or manual reset options
Trip-free mechanism and STOP function
Direct connection with block contactors

Technical Specifications

Specification	Value
Material	Plastic and metal
Dimensions	88.3 mm x 45 mm x 70.5 mm
Weight	0.13 kg
Power	Rated operational voltage
Warranty	1 year standard warranty
