Description

Compact and reliable miniature circuit breaker for residential safety.

The ABB SH202-C32 is a compact home miniature circuit breaker designed for residential applications. It features current limiting capabilities and incorporates two distinct tripping mechanisms: a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short-circuit protection. The breaker is versatile, supporting various configurations including 1P, 1P+N, 2P, 3P, 3P+N, and 4P, with breaking capacities of up to 6 kA at 230/400 V AC. It is rated for currents up to 40 A, ensuring robust performance in electrical protection. Built to comply with IEC/EN 60898-1 standards, the SH202-C32 is a reliable choice for ensuring the safety of residential electrical systems. This breaker is part of ABB's SH200 series, known for its durability and efficiency in safeguarding home electrical circuits.

Key Features

Two tripping mechanisms: thermal and electromechanical
Supports multiple configurations for diverse applications
High breaking capacity up to 6 kA
Rated current up to 40 A for robust protection
Complies with IEC/EN 60898-1 standards

Technical Specifications

Specification	Value
Material	High-grade thermoplastic
Dimensions	Height: 88 mm, Width: 35 mm, Depth: 69 mm
Weight	0.25 kg
Power	230/400 V AC, 32 A
Warranty	5 years manufacturer warranty

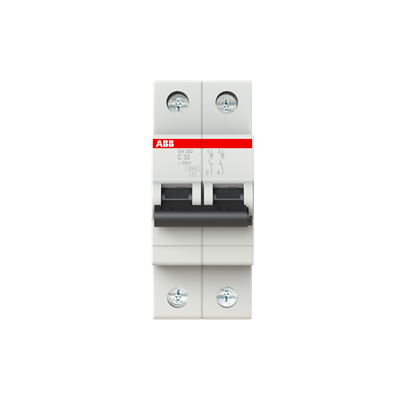

ABB SH202-C32 Miniature Circuit Breaker

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

قاطع دائرة مصغر مدمج وموثوق للسلامة المنزلية. Read more

SKU: 2CDS212001R0324

قاطع دائرة مصغر مدمج وموثوق للسلامة المنزلية.

Description

Compact and reliable miniature circuit breaker for residential safety.

The ABB SH202-C32 is a compact home miniature circuit breaker designed for residential applications. It features current limiting capabilities and incorporates two distinct tripping mechanisms: a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short-circuit protection. The breaker is versatile, supporting various configurations including 1P, 1P+N, 2P, 3P, 3P+N, and 4P, with breaking capacities of up to 6 kA at 230/400 V AC. It is rated for currents up to 40 A, ensuring robust performance in electrical protection. Built to comply with IEC/EN 60898-1 standards, the SH202-C32 is a reliable choice for ensuring the safety of residential electrical systems. This breaker is part of ABB's SH200 series, known for its durability and efficiency in safeguarding home electrical circuits.

Key Features

Two tripping mechanisms: thermal and electromechanical
Supports multiple configurations for diverse applications
High breaking capacity up to 6 kA
Rated current up to 40 A for robust protection
Complies with IEC/EN 60898-1 standards

Technical Specifications

Specification	Value
Material	High-grade thermoplastic
Dimensions	Height: 88 mm, Width: 35 mm, Depth: 69 mm
Weight	0.25 kg
Power	230/400 V AC, 32 A
Warranty	5 years manufacturer warranty
