High-performance circuit breaker with dual tripping mechanisms for comprehensive protection.

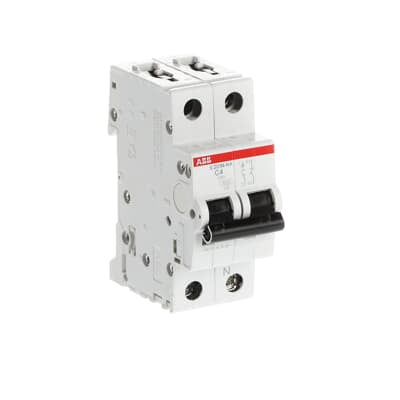

The ABB S201M-C4NA is a high-performance miniature circuit breaker designed for overload and short circuit protection. It features two distinct tripping mechanisms: a delayed thermal mechanism for overload protection and an electromechanical mechanism for short circuit protection. This breaker is part of the S200M series, which is available with various characteristics (B, C, D, K, Z), configurations (1P, 1P+N, 2P, 3P, 3P+N, 4P), and breaking capacities up to 10 kA at 230/400 V AC. Rated currents for these breakers go up to 63A. The S200M breakers comply with IEC/EN 60898-1 and IEC/EN 60947-2 standards, making them suitable for residential, commercial, and industrial applications. Additionally, the S201M-C4NA allows for the mounting of bottom-fitting auxiliary contacts, saving up to 50% space in installations.
Key Features
- Delayed thermal tripping for overload protection
- Electromechanical tripping for short circuit protection
- Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards
- Various characteristics and configurations available
- Auxiliary contacts save up to 50% installation space
Technical Specifications
| Specification |
Value |
| Material | High-grade electrical materials |
| Dimensions | Height: 88 mm; Width: 35 mm; Depth: 69 mm |
| Weight | 0.25 kg |
| Power | Rated up to 63A, 230/400 V AC |
| Warranty | Standard manufacturer's warranty |
