Advanced softstarter with seamless motor control and enhanced communication options.

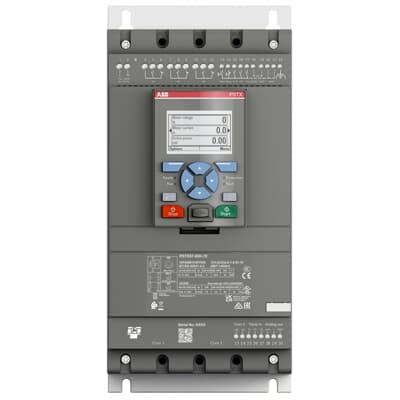

The ABB PSTX37-600-70 Softstarter is designed to seamlessly manage the starting and stopping of medium to large-sized three-phase motors. With a rated maximum operational current of 37 A and an operating voltage range from 208 to 600 V AC, this softstarter provides exceptional control through a three-phase soft start and stop, utilizing either a voltage or torque ramp. It features a built-in bypass for simplified installation and energy efficiency. The device is equipped with advanced functionalities including current limit, kickstart, analog output, motor heating, and pump cleaning, ensuring reliable operation across various applications such as pumps, fans, compressors, and conveyors. The PSTX37-600-70 also offers enhanced communication options through Modbus RTU and optional ANYBUS modules supporting major protocols like Profinet, Profibus, Modbus TCP, and Ethernet IP. A detachable full graphic display with IP66 and 4x outdoor rating facilitates user interaction, making it a versatile solution for diverse industrial environments.
Key Features
- Three-phase control with soft start and stop
- Built-in bypass for energy efficiency
- Advanced communication via Modbus RTU
- Detachable full graphic display with IP66
- Suitable for various industrial applications
Technical Specifications
| Specification |
Value |
| Material | Durable industrial grade |
| Dimensions | 198 x 150 x 314 mm |
| Weight | 4.6 kg |
| Power | 208...600 V AC |
| Warranty | 2 years manufacturer warranty |
