Advanced motor control with ABB PSTX170-600-70, offering smooth start and stop, energy efficiency, and versatile communication options.

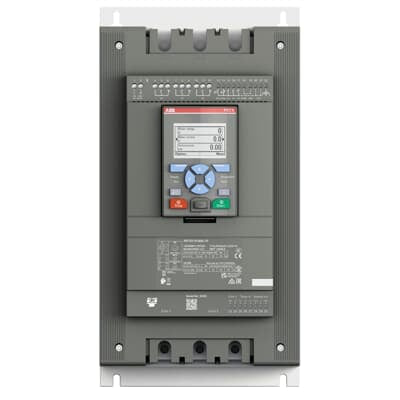

The ABB PSTX170-600-70 Softstarter is designed for enhanced motor control, offering a maximum operational current of 170 A across an operating voltage range of 208 to 600 V AC. This softstarter is ideal for medium to large-sized three-phase motors, facilitating a smooth and efficient start and stop through voltage or torque ramp control. Its built-in bypass functionality ensures easy installation and energy savings, supported by a detachable full graphic display with IP66 and 4x outdoor rating for user-friendly interaction. Equipped with advanced features such as current limit, kickstart, and analog output, the PSTX170-600-70 also supports motor heating, pump cleaning, and diagnostic functions. Communication is versatile, allowing integration via Modbus RTU or optional ANYBUS modules for major protocols like Profinet and Ethernet IP. Suitable for applications including pumps, fans, and conveyors, the PSTX170-600-70 is a comprehensive solution for reliable motor starting applications.
Key Features
- Three-phase control soft start and stop
- Built-in bypass for energy saving
- Detachable full graphic display
- Supports Modbus RTU and ANYBUS modules
- Suitable for medium to large-sized motors
Technical Specifications
| Specification |
Value |
| Material | High-grade industrial components |
| Dimensions | Depth 283 mm, Height 377 mm, Width 199 mm |
| Weight | 8.9 kg |
| Power | Operating voltage 208-600 V AC |
| Warranty | Standard manufacturer warranty |
