Description

High-performance RJ45 connector for Cat.6 with tool-less wiring and gold-plated contacts.

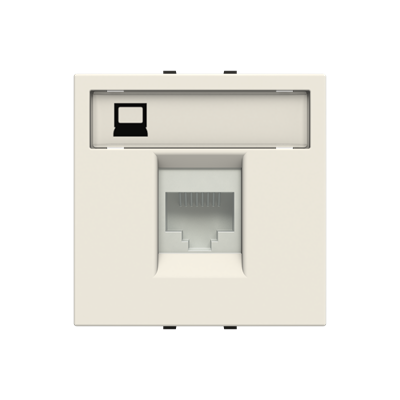

The ABB N2218.6 BL is a high-performance RJ45 type connector designed to meet Cat.6 standards, offering superior connectivity for data transmission. It features an 8-pole configuration with UTP (Unshielded Twisted Pair) technology, ensuring a maximum data speed of 250MHz/1Gbps for distances up to 100 meters, and up to 10Gbps for shorter distances of 37-55 meters. The connector's housing is made from durable ABS+PC material, rated at UL 94V-0 for flame resistance, ensuring longevity and safety in various installations. The precision-engineered contacts are plated with 3~50 micro-inch gold over nickel, optimizing signal quality and reducing corrosion over time. The tool-less wiring feature simplifies installation, making it suitable for both professional and DIY setups. With compliance to ANSI/TIA/EIA 568B.2, ISO/IEC11801, and EN50173 standards, this connector is a versatile choice for a wide range of networking environments.

Key Features

  • Cat.6 RJ45 connector with 8 poles
  • UTP technology for enhanced data speed
  • Housing made from ABS+PC, UL 94V-0 rated
  • Tool-less wiring for easy installation
  • Gold-plated contacts for improved durability

Technical Specifications

Specification Value
MaterialABS+PC, UL 94V-0
Dimensions44 mm x 44 mm x 32 mm
Weight0.048 kg
PowerN/A
Warranty1 year limited warranty

Read more

Product form

ABB N2218.6 BL Cat.6 RJ45 Connector

ABB

موصل RJ45 عالي الأداء لـ Cat.6 مع توصيل بدون أداة واتصالات مطلية بالذهب. Read more

    SKU: 2CLA221860B1101

      موصل RJ45 عالي الأداء لـ Cat.6 مع توصيل بدون أداة واتصالات مطلية بالذهب.

      Description

      High-performance RJ45 connector for Cat.6 with tool-less wiring and gold-plated contacts.
      The ABB N2218.6 BL is a high-performance RJ45 type connector designed to meet Cat.6 standards, offering superior connectivity for data transmission. It features an 8-pole configuration with UTP (Unshielded Twisted Pair) technology, ensuring a maximum data speed of 250MHz/1Gbps for distances up to 100 meters, and up to 10Gbps for shorter distances of 37-55 meters. The connector's housing is made from durable ABS+PC material, rated at UL 94V-0 for flame resistance, ensuring longevity and safety in various installations. The precision-engineered contacts are plated with 3~50 micro-inch gold over nickel, optimizing signal quality and reducing corrosion over time. The tool-less wiring feature simplifies installation, making it suitable for both professional and DIY setups. With compliance to ANSI/TIA/EIA 568B.2, ISO/IEC11801, and EN50173 standards, this connector is a versatile choice for a wide range of networking environments.

      Key Features

      • Cat.6 RJ45 connector with 8 poles
      • UTP technology for enhanced data speed
      • Housing made from ABS+PC, UL 94V-0 rated
      • Tool-less wiring for easy installation
      • Gold-plated contacts for improved durability

      Technical Specifications

      Specification Value
      MaterialABS+PC, UL 94V-0
      Dimensions44 mm x 44 mm x 32 mm
      Weight0.048 kg
      PowerN/A
      Warranty1 year limited warranty
