Compact motor starter with 6.3 A current rating, ideal for motor protection.

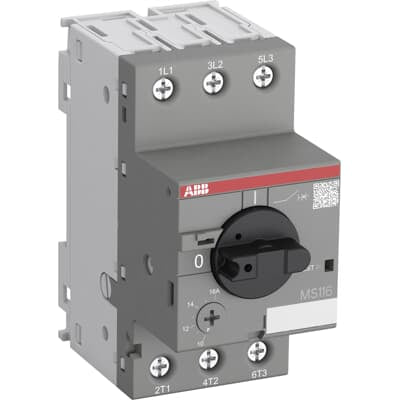

The ABB MS116-6.3 manual motor starter is a compact and efficient device designed to protect motors from short-circuits, overloads, and phase failures. With a width of only 45 mm, it supports a rated operational current of 6.3 A. This starter is particularly suited for both three-phase and single-phase applications. It integrates a built-in disconnect function, temperature compensation, and a trip-free mechanism, ensuring reliable motor protection without the need for a separate fuse. The device features a rotary handle with a clear switch position indication, enhancing operational convenience. Accessories such as auxiliary contacts, signaling contacts, undervoltage releases, and locking devices are available, making it a versatile choice for various industrial applications. The MS116-6.3 is engineered for high performance, offering a rated service short-circuit breaking capacity of 50 kA at 400 VAC with a trip class of 10A. Its robust design ensures durability and reliability in demanding environments, providing peace of mind for operations relying on continuous motor function.
Key Features
- Compact 45 mm width design
- Rated operational current of 6.3 A
- Suitable for three- and single-phase applications
- Built-in disconnect function
- Trip-free mechanism
Technical Specifications
| Specification |
Value |
| Material | Plastic |
| Dimensions | 45 mm x 90 mm x 85.6 mm |
| Weight | 0.265 kg |
| Power | Rated operational current of 6.3 A |
| Warranty | 1 year manufacturer warranty |
