Compact motor starter with robust protection features.

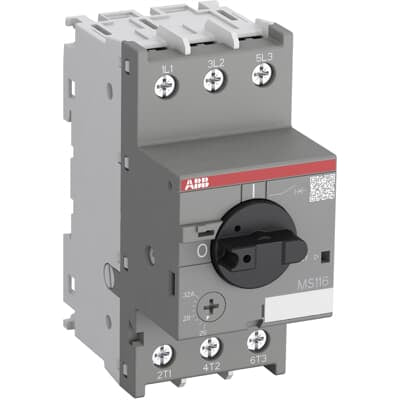

The MS116-32 manual motor starter is a compact device designed to provide reliable protection for motors. With a width of just 45 mm, it is engineered for the on and off switching of motors, ensuring they are safeguarded against short-circuits, overloads, and phase failures without the need for a fuse. The device is rated for an operational current of 32.0 A and features a short-circuit breaking capacity of 10 kA at 400 VAC with a trip class of 10A. Additional features include a built-in disconnect function, temperature compensation, trip-free mechanism, and a rotary handle with a clear switch position indication. It is suitable for both three- and single-phase applications, and can be complemented with various accessories such as auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks, and locking devices to prevent unauthorized changes. This versatile device offers a robust and reliable solution for motor protection needs.
Key Features
- Rated operational current of 32.0 A
- Short-circuit breaking capacity of 10 kA
- Trip-free mechanism and temperature compensation
- Built-in disconnect function
- Suitable for three- and single-phase applications
Technical Specifications
| Specification |
Value |
| Material | High-grade plastic |
| Dimensions | 45 mm x 85.4 mm x 97.8 mm |
| Weight | 0.31 kg |
| Power | Rated Operational Power 15 kW |
| Warranty | 2 years limited warranty |
