Compact motor starter with 2.5 A operational current, safeguards against overloads and short circuits.

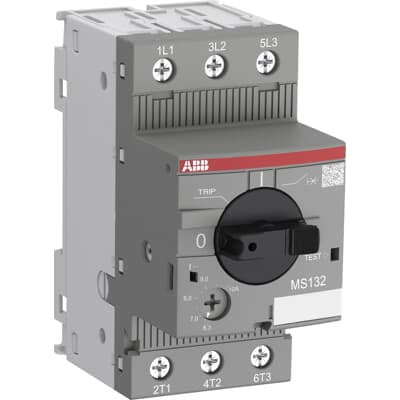

The MS132-2.5 manual motor starter from ABB is a compact, efficient solution for motor protection. With a width of just 45 mm, it is designed to manually switch motors on and off and safeguard them against overloads, short circuits, and phase failures without requiring a fuse. The device boasts a rated operational current of 2.50 A and can handle short-circuit breaking capacity up to 100 kA at 400 VAC. It features a built-in disconnect function, temperature compensation, and a trip-free mechanism, all operated via a rotary handle with clear position indication. This starter is ideal for both three-phase and single-phase applications and includes lockable handles to prevent unauthorized adjustments. Additionally, a wide range of accessories like auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, and more are available for enhanced functionality.
Key Features
- Compact 45 mm width design
- Rated operational current of 2.5 A
- Short-circuit breaking capacity of 100 kA
- Built-in disconnect function
- Lockable rotary handle
Technical Specifications
| Specification |
Value |
| Material | High-quality plastic |
| Dimensions | 45 mm x 90 mm x 86.75 mm |
| Weight | 0.265 kg |
| Power | 400 VAC |
| Warranty | 1 year |
