Reliable motor protection relay with wide settings, no external supply needed.

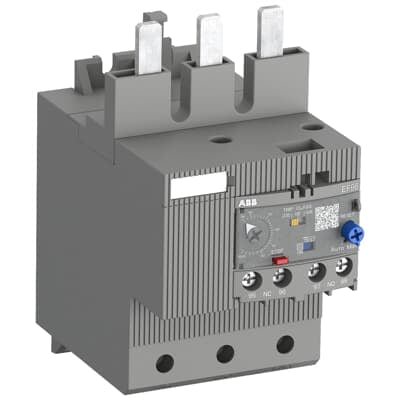

The ABB EF96-100 is a state-of-the-art electronic overload relay, designed for superior protection of motors against overload and phase failure. It operates without the need for an external power supply, enhancing its reliability and ease of use. This relay is ideal for standard motor applications and boasts a wide setting range, high accuracy, and an extensive operational temperature range. Users can select from a variety of trip classes (10E, 20E, 30E) for optimal customization. Additional features include temperature compensation, trip contact (NC), signal contact (NO), and options for automatic or manual reset. The relay also includes a trip-free mechanism, STOP and Test functions, and a trip indication. It is directly connectable to contactors and comes with optional single mounting kits. The EF96-100 is certified with ATEX and IECEx, ensuring compliance with international safety standards.
Key Features
- No external power supply required
- Wide setting range for trip class
- High operational temperature range
- Automatic or manual reset options
- Direct connection to contactors
Technical Specifications
| Specification |
Value |
| Material | Durable plastic and metal |
| Dimensions | 105.2 mm x 70 mm x 132.7 mm |
| Weight | 0.802 kg |
| Power | Self-supplied |
| Warranty | 2 years |
