Versatile relay for multiple circuit control with robust durability.

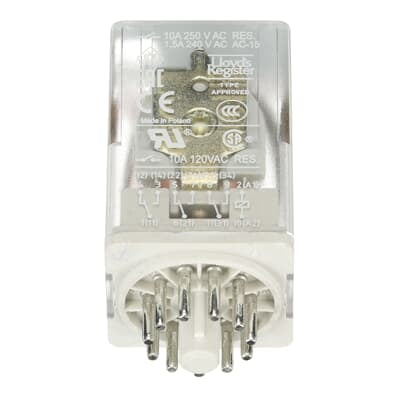

The ABB CR-U110AC3 is a versatile pluggable interface relay, often referred to as an ice cube relay, designed for seamless integration into various electrical systems. This relay can be mounted onto a DIN Rail, providing a robust and reliable solution for control applications. With its circular pin terminals, it is engineered to withstand rigorous, repetitive use, offering enhanced durability compared to standard relays. Operating with a 110 V AC rated control supply voltage, the CR-U110AC3 features a 3 c/o (SPDT) output with contact ratings of 250 V / 10 A, capable of controlling multiple circuits with a single input signal. It includes an integrated test button for manual actuation and an LED indicator for visual confirmation of coil energization. Accessories such as standard sockets, logic sockets, pluggable function modules, holders, and markers are available to enhance its functionality.
Key Features
- Pluggable interface for easy integration
- Operates on 110 V AC rated supply
- 3 c/o (SPDT) output for versatile use
- Integrated test button and LED indicator
- Robust construction for durability
Technical Specifications
| Specification |
Value |
| Material | Durable plastic and metal |
| Dimensions | 35 x 54.4 x 35 mm |
| Weight | 0.083 kg |
| Power | 110 V AC |
| Warranty | 1 year |
