Versatile pluggable relay for industrial automation with 230V AC and 4 c/o output.

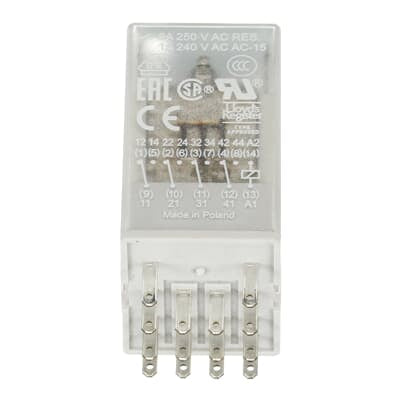

The ABB CR-M230AC4 is a versatile pluggable interface relay designed to enhance the functionality of industrial automation systems. This miniature relay is engineered to be plugged into a suitable ABB CR-M socket, allowing for seamless snap-on mounting onto a DIN Rail. Operating with a 230 V AC rated control supply voltage, it boasts a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, offering the capability to switch multiple circuits with a single input signal. The relay features an integrated test button, facilitating manual actuation by locking its output contacts, thus enabling straightforward testing and commissioning. Additionally, it includes an integrated LED for visual indication of the relay coil's energization, ensuring clear operational status at a glance. The CR-M230AC4 supports various accessories including standard sockets, logic sockets, pluggable function modules, holders, and markers, making it an optimal choice for diverse industrial applications.
Key Features
- Pluggable interface design
- 230 V AC control voltage
- 4 c/o (SPDT) output contacts
- Integrated test button for manual actuation
- LED indication for coil energization
Technical Specifications
| Specification |
Value |
| Material | Plastic and metal components |
| Dimensions | 27.5 mm x 35.6 mm x 21.2 mm |
| Weight | 0.033 kg |
| Power | 230 V AC |
| Warranty | 1 year limited warranty |
