Description

Robust three-phase relay for monitoring voltage anomalies.

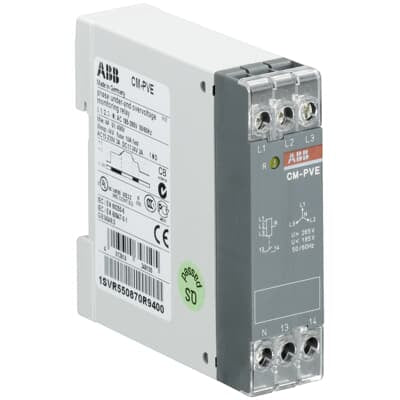

The CM-PVE relay is part of ABB's CM series of three-phase monitoring devices, designed to ensure the reliability and safety of electrical systems by monitoring phase loss, overvoltage, and undervoltage conditions. Operating with a rated control supply voltage and three-phase measuring voltage of 185-265 V AC, it provides a robust solution for both single and three-phase systems with neutral mains. The relay features a closed circuit principle with a 1 n/o output, rated at 250 V / 4 A, ensuring reliable performance across a range of industrial applications. Its threshold values are preset to offer straightforward installation and operation, enhancing system uptime and reducing the risk of electrical faults.

Key Features

  • Monitors phase loss, overvoltage, undervoltage
  • Rated supply voltage of 185-265 V AC
  • 1 n/o output rated at 250 V / 4 A
  • Suitable for single and three-phase systems
  • Preset threshold values for easy installation

Technical Specifications

Specification Value
MaterialDurable plastic housing
Dimensions78.5 x 78 x 22.5 mm
Weight0.069 kg
Power185-265 V AC
Warranty1 year limited warranty

Read more
