Description

Advanced motor protection relay with versatile voltage range and ATEX certification.

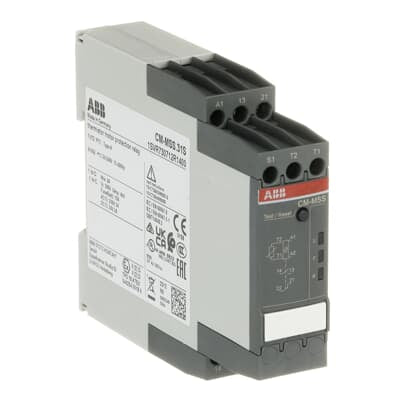

The CM-MSS.31S is part of ABB's renowned range of thermistor motor protection relays, designed to provide advanced protection for motors. This relay operates at a rated control supply voltage of 24 - 240 V AC/DC, and features a 1 n/c + 1 n/o (SPDT) output with contacts rated at 250 V / 4 A. It is built to monitor PTC temperature sensors using a closed-circuit principle, ensuring reliable motor protection. The relay's sensor circuit is equipped with short-circuit and interrupted-wire monitoring capabilities, and it can be reset automatically, manually, or remotely after a fault has been cleared. Certified under the ATEX directive 94/9/EC, the CM-MSS.31S includes a reset/test button and is compatible with a sealable transparent cover to prevent unauthorized adjustments. Its screw connection technology utilizes double-chamber cage terminals for secure and efficient installation.

Key Features

  • Wide control supply voltage range
  • SPDT output for flexible applications
  • PTC sensor monitoring for enhanced protection
  • Certified under ATEX directive
  • Automatic, manual, and remote reset options

Technical Specifications

Specification Value
MaterialDurable plastic casing
DimensionsCompact design for easy installation
WeightLightweight for ease of use
Power24 - 240 V AC/DC
Warranty2-year limited warranty

Read more

Product form

ABB CM-MSS.31S Motor Protection Relay

ABB

مرحل حماية المحرك المتقدم مع مدى جهد متعدد الاستخدامات وشهادة ATEX. Read more

    SKU: 1SVR730712R1400

      مرحل حماية المحرك المتقدم مع مدى جهد متعدد الاستخدامات وشهادة ATEX.

      Description

      Advanced motor protection relay with versatile voltage range and ATEX certification.
      The CM-MSS.31S is part of ABB's renowned range of thermistor motor protection relays, designed to provide advanced protection for motors. This relay operates at a rated control supply voltage of 24 - 240 V AC/DC, and features a 1 n/c + 1 n/o (SPDT) output with contacts rated at 250 V / 4 A. It is built to monitor PTC temperature sensors using a closed-circuit principle, ensuring reliable motor protection. The relay's sensor circuit is equipped with short-circuit and interrupted-wire monitoring capabilities, and it can be reset automatically, manually, or remotely after a fault has been cleared. Certified under the ATEX directive 94/9/EC, the CM-MSS.31S includes a reset/test button and is compatible with a sealable transparent cover to prevent unauthorized adjustments. Its screw connection technology utilizes double-chamber cage terminals for secure and efficient installation.

      Key Features

      • Wide control supply voltage range
      • SPDT output for flexible applications
      • PTC sensor monitoring for enhanced protection
      • Certified under ATEX directive
      • Automatic, manual, and remote reset options

      Technical Specifications

      Specification Value
      MaterialDurable plastic casing
      DimensionsCompact design for easy installation
      WeightLightweight for ease of use
      Power24 - 240 V AC/DC
      Warranty2-year limited warranty
