Description

Premium contactor for versatile motor control and power switching.

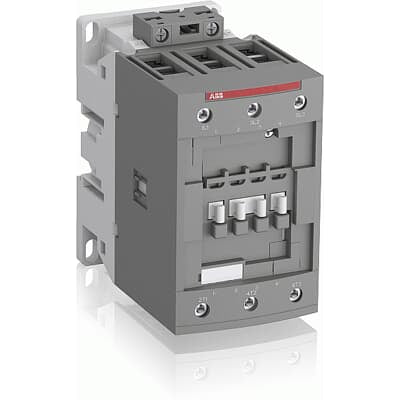

The ABB AF80-30-00-13 is a high-performance 3 pole contactor designed for controlling motors up to 37 kW at 400 V AC or 60 hp at 480 V UL. With its screw terminals, it can effectively switch power circuits up to 125 A (AC-1) or 105 A UL general use. The contactor is equipped with ABB's advanced AF technology, allowing for a wide control voltage range between 100-250 V 50/60 Hz and DC. This feature enhances its ability to manage voltage variations and ensures energy efficiency by reducing panel energy consumption. Surge protection is integrated, offering a compact and robust solution for various industrial applications. The block type design of the AF contactors allows for easy expansion with auxiliary contact blocks and a wide range of accessories, making it versatile and adaptable for different electrical setups.

Key Features

Controls motors up to 37 kW
Wide voltage range: 100-250 V
Integrated surge protection
Expandable with auxiliary contacts
Compact block design

Technical Specifications

Specification	Value
Material	High-grade industrial plastic
Dimensions	Height: 125.5 mm, Width: 70 mm, Depth: 116 mm
Weight	1.17 kg
Power	100-250 V 50/60 Hz and DC
Warranty	2 years manufacturer warranty

ABB AF80-30-00-13 Contactor

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

كونتاكتور عالي الجودة لتحكم متنوع في المحركات وتبديل الطاقة. Read more

SKU: 1SBL397001R1300

كونتاكتور عالي الجودة لتحكم متنوع في المحركات وتبديل الطاقة.

Description

Premium contactor for versatile motor control and power switching.

The ABB AF80-30-00-13 is a high-performance 3 pole contactor designed for controlling motors up to 37 kW at 400 V AC or 60 hp at 480 V UL. With its screw terminals, it can effectively switch power circuits up to 125 A (AC-1) or 105 A UL general use. The contactor is equipped with ABB's advanced AF technology, allowing for a wide control voltage range between 100-250 V 50/60 Hz and DC. This feature enhances its ability to manage voltage variations and ensures energy efficiency by reducing panel energy consumption. Surge protection is integrated, offering a compact and robust solution for various industrial applications. The block type design of the AF contactors allows for easy expansion with auxiliary contact blocks and a wide range of accessories, making it versatile and adaptable for different electrical setups.

Key Features

Controls motors up to 37 kW
Wide voltage range: 100-250 V
Integrated surge protection
Expandable with auxiliary contacts
Compact block design

Technical Specifications

Specification	Value
Material	High-grade industrial plastic
Dimensions	Height: 125.5 mm, Width: 70 mm, Depth: 116 mm
Weight	1.17 kg
Power	100-250 V 50/60 Hz and DC
Warranty	2 years manufacturer warranty
