Description

Efficient 3-pole contactor with wide voltage range and built-in surge protection.
The ABB AF65-30-00-13 is a highly efficient 3-pole contactor designed to control motors up to 30 kW at 400 V AC (AC-3) or 50 hp at 480 V UL. This robust device is equipped with screw terminals and is capable of switching power circuits up to 105 A (AC-1) or 90 A UL. Thanks to its advanced AF technology, the contactor offers a wide control voltage range from 100 to 250 V AC/DC, accommodating large control voltage variations while reducing panel energy consumption. Built-in surge protection ensures reliable operation in unstable networks. The AF65 contactor features a modular design that allows for easy extension with auxiliary contact blocks and a variety of accessories, making it an ideal solution for a wide range of industrial applications.

Key Features

  • Wide control voltage range (100-250 V AC/DC)
  • Built-in surge protection
  • Modular design for easy extension
  • Controls motors up to 30 kW / 50 hp
  • Screw terminals for secure connections

Technical Specifications

Specification Value
MaterialDurable plastic and metal
DimensionsHeight: 125.5 mm, Width: 55 mm, Depth: 111 mm
Weight0.95 kg
Power100-250 V 50/60 Hz AC/DC
Warranty1 year limited warranty

Read more

Product form

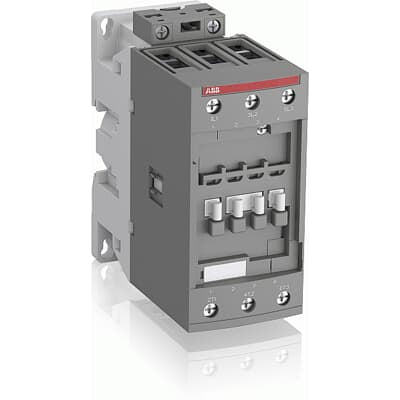

ABB AF65-30-00-13 Contactor

ABB

جهاز تلامس ثلاثي الأقطاب فعال مع نطاق جهد واسع وحماية مدمجة من زيادة الجهد. Read more

    SKU: 1SBL387001R1300

      جهاز تلامس ثلاثي الأقطاب فعال مع نطاق جهد واسع وحماية مدمجة من زيادة الجهد.

      Description

      Efficient 3-pole contactor with wide voltage range and built-in surge protection.
      The ABB AF65-30-00-13 is a highly efficient 3-pole contactor designed to control motors up to 30 kW at 400 V AC (AC-3) or 50 hp at 480 V UL. This robust device is equipped with screw terminals and is capable of switching power circuits up to 105 A (AC-1) or 90 A UL. Thanks to its advanced AF technology, the contactor offers a wide control voltage range from 100 to 250 V AC/DC, accommodating large control voltage variations while reducing panel energy consumption. Built-in surge protection ensures reliable operation in unstable networks. The AF65 contactor features a modular design that allows for easy extension with auxiliary contact blocks and a variety of accessories, making it an ideal solution for a wide range of industrial applications.

      Key Features

      • Wide control voltage range (100-250 V AC/DC)
      • Built-in surge protection
      • Modular design for easy extension
      • Controls motors up to 30 kW / 50 hp
      • Screw terminals for secure connections

      Technical Specifications

      Specification Value
      MaterialDurable plastic and metal
      DimensionsHeight: 125.5 mm, Width: 55 mm, Depth: 111 mm
      Weight0.95 kg
      Power100-250 V 50/60 Hz AC/DC
      Warranty1 year limited warranty

      Read more
