Description

Advanced 3-pole contactor with AF technology for efficient motor control.

The AF65-30-00-11 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, designed to control motors up to 30 kW / 400 V AC (AC-3) or 50 hp / 480 V UL. It is capable of switching power circuits up to 105 A (AC-1) or 90 A UL general use. Utilizing advanced AF technology, this contactor offers a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), effectively managing large voltage variations and reducing energy consumption. The built-in surge protection makes it a compact and reliable solution for unstable networks. Its block type design allows for easy expansion with auxiliary contact blocks and a wide range of accessories.

Key Features

Three-pole 690 V IEC or 600 UL contactor
Controls motors up to 30 kW / 50 hp
Wide control voltage range (24-60 V AC/DC)
Built-in surge protection
Expandable with auxiliary contact blocks

Technical Specifications

Specification	Value
Material	High-grade industrial material
Dimensions	Height: 125.5 mm, Width: 55 mm, Depth: 111 mm
Weight	0.97 kg
Power	24-60 V 50/60 Hz and 20-60 V DC
Warranty	Standard ABB warranty

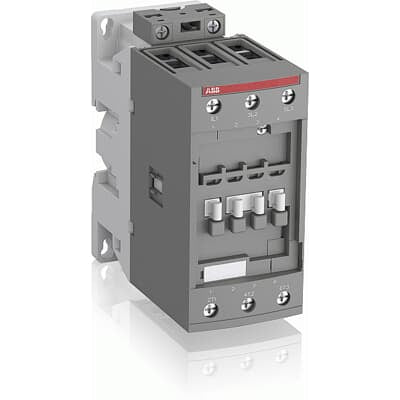

ABB AF65-30-00-11 Contactor

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

موصل ثلاثي الأقطاب متقدم بتقنية AF للتحكم الفعال في المحركات. Read more

SKU: 1SBL387001R1100

موصل ثلاثي الأقطاب متقدم بتقنية AF للتحكم الفعال في المحركات.

Description

Advanced 3-pole contactor with AF technology for efficient motor control.

The AF65-30-00-11 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, designed to control motors up to 30 kW / 400 V AC (AC-3) or 50 hp / 480 V UL. It is capable of switching power circuits up to 105 A (AC-1) or 90 A UL general use. Utilizing advanced AF technology, this contactor offers a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), effectively managing large voltage variations and reducing energy consumption. The built-in surge protection makes it a compact and reliable solution for unstable networks. Its block type design allows for easy expansion with auxiliary contact blocks and a wide range of accessories.

Key Features

Three-pole 690 V IEC or 600 UL contactor
Controls motors up to 30 kW / 50 hp
Wide control voltage range (24-60 V AC/DC)
Built-in surge protection
Expandable with auxiliary contact blocks

Technical Specifications

Specification	Value
Material	High-grade industrial material
Dimensions	Height: 125.5 mm, Width: 55 mm, Depth: 111 mm
Weight	0.97 kg
Power	24-60 V 50/60 Hz and 20-60 V DC
Warranty	Standard ABB warranty
