Description

High-performance 3 pole contactor with wide voltage range and built-in surge protection.
The AF38-30-00-13 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, designed for controlling motors up to 18.5 kW / 400 V AC (AC-3) or 25 hp / 480 V UL and switching power circuits up to 50 A (AC-1) or 50 A UL general use. Thanks to the AF technology, the contactor features a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumption, and ensuring reliable operations even in unstable networks. Additionally, it includes built-in surge protection for a compact and efficient solution. The AF contactor's block type design allows for easy extension with add-on auxiliary contact blocks and a wide range of accessories.

Key Features

  • 3 pole - 690 V IEC or 600 UL contactor
  • Controls motors up to 18.5 kW / 25 hp
  • Wide control voltage range (100-250 V)
  • Built-in surge protection
  • Easily extendable with auxiliary blocks

Technical Specifications

Specification Value
MaterialHigh-grade industrial plastic
Dimensions86 mm x 86 mm x 45 mm
Weight0.31 kg
Power690 V IEC or 600 UL
WarrantyStandard manufacturer warranty

Read more

Product form

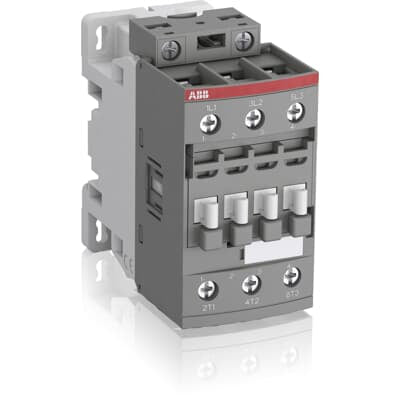

ABB AF38-30-00-13 Contactor

ABB

قاطع ثلاثي الأقطاب عالي الأداء مع مجال جهد واسع وحماية مدمجة من الارتفاعات المفاجئة. Read more

    SKU: 1SBL297001R1300

      قاطع ثلاثي الأقطاب عالي الأداء مع مجال جهد واسع وحماية مدمجة من الارتفاعات المفاجئة.

      Description

      High-performance 3 pole contactor with wide voltage range and built-in surge protection.
      The AF38-30-00-13 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, designed for controlling motors up to 18.5 kW / 400 V AC (AC-3) or 25 hp / 480 V UL and switching power circuits up to 50 A (AC-1) or 50 A UL general use. Thanks to the AF technology, the contactor features a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumption, and ensuring reliable operations even in unstable networks. Additionally, it includes built-in surge protection for a compact and efficient solution. The AF contactor's block type design allows for easy extension with add-on auxiliary contact blocks and a wide range of accessories.

      Key Features

      • 3 pole - 690 V IEC or 600 UL contactor
      • Controls motors up to 18.5 kW / 25 hp
      • Wide control voltage range (100-250 V)
      • Built-in surge protection
      • Easily extendable with auxiliary blocks

      Technical Specifications

      Specification Value
      MaterialHigh-grade industrial plastic
      Dimensions86 mm x 86 mm x 45 mm
      Weight0.31 kg
      Power690 V IEC or 600 UL
      WarrantyStandard manufacturer warranty

      Read more
