Description

3 pole contactor with wide voltage range and built-in surge protection.

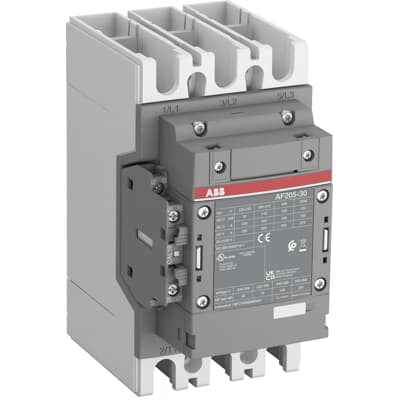

The AF205-30-11-13 is a robust 3 pole contactor designed for high efficiency in controlling motors and switching power circuits. This device operates at 1000 V IEC or 600 V UL, managing motors up to 110 kW / 400 V AC (AC-3) or 150 hp / 480 V UL. With its advanced AF technology, it accommodates a wide control voltage range from 100-250 V 50/60 Hz and DC, ensuring reliable performance even in unstable networks. The built-in surge protection makes it a compact and efficient choice for various applications. Its design allows for easy extension with additional auxiliary contact blocks and accessories, making it a flexible solution for industrial needs.

Key Features

  • 3 pole contactor for motors up to 110 kW
  • Wide control voltage range 100-250 V
  • Built-in surge protection
  • Compact design with easy extensions
  • Suitable for unstable network environments

Technical Specifications

Specification Value
MaterialHigh-grade industrial components
Dimensions152 mm x 196 mm x 105 mm
Weight2.4 kg
Power1000 V IEC / 600 V UL
Warranty1 year limited warranty

Read more

Product form

ABB AF205-30-11 Contactor 3-Pole

ABB

قاطع ثلاثي الأقطاب مع نطاق جهد واسع وحماية مدمجة ضد الاندفاع. Read more

    SKU: 1SFL527002R1311

      قاطع ثلاثي الأقطاب مع نطاق جهد واسع وحماية مدمجة ضد الاندفاع.

      Description

      3 pole contactor with wide voltage range and built-in surge protection.
      The AF205-30-11-13 is a robust 3 pole contactor designed for high efficiency in controlling motors and switching power circuits. This device operates at 1000 V IEC or 600 V UL, managing motors up to 110 kW / 400 V AC (AC-3) or 150 hp / 480 V UL. With its advanced AF technology, it accommodates a wide control voltage range from 100-250 V 50/60 Hz and DC, ensuring reliable performance even in unstable networks. The built-in surge protection makes it a compact and efficient choice for various applications. Its design allows for easy extension with additional auxiliary contact blocks and accessories, making it a flexible solution for industrial needs.

      Key Features

      • 3 pole contactor for motors up to 110 kW
      • Wide control voltage range 100-250 V
      • Built-in surge protection
      • Compact design with easy extensions
      • Suitable for unstable network environments

      Technical Specifications

      Specification Value
      MaterialHigh-grade industrial components
      Dimensions152 mm x 196 mm x 105 mm
      Weight2.4 kg
      Power1000 V IEC / 600 V UL
      Warranty1 year limited warranty
