Description

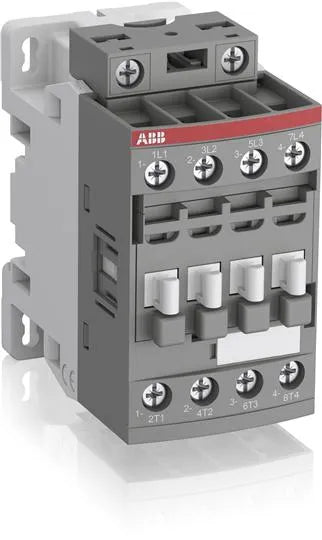

High-performance 4 pole contactor for motors up to 7.5 kW with AF technology.
The AF16-40-00-13 is a 4 pole contactor designed for robust performance and reliability. It operates under 690 V IEC or 600 UL standards with screw terminals, making it capable of controlling motors up to 7.5 kW / 400 V AC (AC-3) and switching power circuits up to 30 A (AC-1) or 30 A UL general use. The contactor features ABB's advanced AF technology, which provides a wide control voltage range (100-250 V 50/60 Hz and DC), ensuring consistent operation even with significant voltage fluctuations and reducing energy consumption. Surge protection is integrated into the compact design, which can be supplemented with auxiliary contact blocks and other accessories to meet diverse operational needs. The AF16-40-00-13 is built to support efficient and reliable electrical management across various applications, offering ease of installation and maintenance.

Key Features

  • Controls motors up to 7.5 kW
  • Wide voltage range (100-250 V)
  • Built-in surge protection
  • Compact and extendable design
  • Supports AC-3 and AC-1 applications

Technical Specifications

Specification Value
MaterialDurable polymer and metal
Dimensions77 x 45 x 86 mm
Weight0.27 kg
Power100-250 V 50/60 Hz and DC
Warranty1 year manufacturer warranty

Read more

Product form

ABB AF16-40-00-13 Contactor

ABB

موصل كهربي عالي الأداء بأربعة أقطاب للمحركات حتى 7.5 كيلوواط بتقنية AF. Read more

    SKU: 1SBL177201R1300

    • Shipped today? Order within: May 31, 2025 17:00:00 +0300
      • Shipped today? Order within: May 31, 2025 17:00:00 +0300

      موصل كهربي عالي الأداء بأربعة أقطاب للمحركات حتى 7.5 كيلوواط بتقنية AF.

      Description

      High-performance 4 pole contactor for motors up to 7.5 kW with AF technology.
      The AF16-40-00-13 is a 4 pole contactor designed for robust performance and reliability. It operates under 690 V IEC or 600 UL standards with screw terminals, making it capable of controlling motors up to 7.5 kW / 400 V AC (AC-3) and switching power circuits up to 30 A (AC-1) or 30 A UL general use. The contactor features ABB's advanced AF technology, which provides a wide control voltage range (100-250 V 50/60 Hz and DC), ensuring consistent operation even with significant voltage fluctuations and reducing energy consumption. Surge protection is integrated into the compact design, which can be supplemented with auxiliary contact blocks and other accessories to meet diverse operational needs. The AF16-40-00-13 is built to support efficient and reliable electrical management across various applications, offering ease of installation and maintenance.

      Key Features

      • Controls motors up to 7.5 kW
      • Wide voltage range (100-250 V)
      • Built-in surge protection
      • Compact and extendable design
      • Supports AC-3 and AC-1 applications

      Technical Specifications

      Specification Value
      MaterialDurable polymer and metal
      Dimensions77 x 45 x 86 mm
      Weight0.27 kg
      Power100-250 V 50/60 Hz and DC
      Warranty1 year manufacturer warranty

      Read more
