Description

Versatile 3-pole contactor with wide voltage range and energy-efficient design.

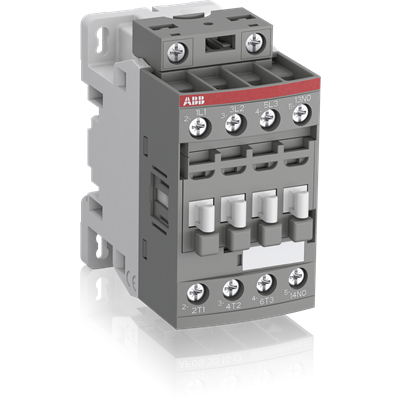

The ABB AF16-30-01-13 is a robust 3-pole contactor designed for versatile applications. It operates effectively at 690 V IEC or 600 V UL, featuring one built-in auxiliary contact and screw terminals. This contactor is capable of controlling motors up to 7.5 kW at 400 V AC (AC-3) or 10 hp at 480 V UL and handles switching power circuits up to 30 A. The innovative AF technology provides a wide control voltage range from 100-250 V, accommodating significant voltage variations and reducing energy consumption, which is critical for ensuring reliable operations in fluctuating network environments. The compact design incorporates built-in surge protection and can be easily expanded with auxiliary contact blocks and a broad range of accessories, making it a flexible solution for various industrial applications.

Key Features

  • Wide control voltage range (100-250 V)
  • Built-in surge protection
  • Handles motors up to 7.5 kW / 10 hp
  • Compact, expandable design
  • Reduces energy consumption

Technical Specifications

Specification Value
MaterialHigh-quality electrical components
DimensionsHeight: 86 mm, Width: 45 mm, Depth: 77 mm
Weight0.27 kg
Power690 V IEC or 600 V UL
Warranty2 years manufacturer warranty
