Description

Versatile contactor with wide voltage range and built-in surge protection.
The AF140-30-11-13 is a 3 pole - 690 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and double clamp, controlling motors up to 75 kW / 400 V AC (AC-3) or 100 hp / 480 V UL and switching power circuits up to 200 A (AC-1) or 200 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Key Features

  • Wide control voltage range of 100-250 V 50/60 Hz and DC
  • Built-in surge protection for compact solution
  • Controls motors up to 75 kW / 100 hp
  • Switching power circuits up to 200 A
  • Easily extendable with auxiliary contact blocks

Technical Specifications

Specification Value
MaterialHigh-quality industrial components
Dimensions126 mm x 150 mm x 90 mm
Weight1.55 kg
Power100-250 V 50/60 Hz and DC
Warranty1 year manufacturer warranty

Read more

Product form

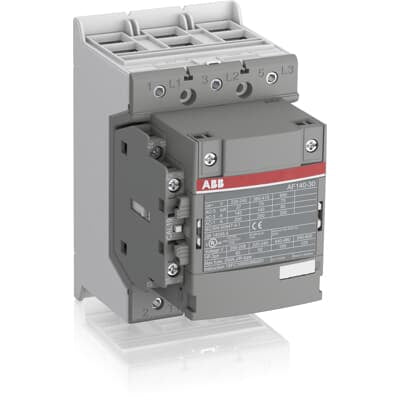

ABB AF140-30-11-13 Contactor

ABB

قاطع متعدد الاستخدامات مع نطاق جهد واسع وحماية مدمجة من الزيادة. Read more

    SKU: 1SFL447001R1311

      قاطع متعدد الاستخدامات مع نطاق جهد واسع وحماية مدمجة من الزيادة.

      Description

      Versatile contactor with wide voltage range and built-in surge protection.
      The AF140-30-11-13 is a 3 pole - 690 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and double clamp, controlling motors up to 75 kW / 400 V AC (AC-3) or 100 hp / 480 V UL and switching power circuits up to 200 A (AC-1) or 200 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

      Key Features

      • Wide control voltage range of 100-250 V 50/60 Hz and DC
      • Built-in surge protection for compact solution
      • Controls motors up to 75 kW / 100 hp
      • Switching power circuits up to 200 A
      • Easily extendable with auxiliary contact blocks

      Technical Specifications

      Specification Value
      MaterialHigh-quality industrial components
      Dimensions126 mm x 150 mm x 90 mm
      Weight1.55 kg
      Power100-250 V 50/60 Hz and DC
      Warranty1 year manufacturer warranty
