Description

Description

Efficient 3 pole contactor with wide voltage range, ideal for motor control and power circuit switching.

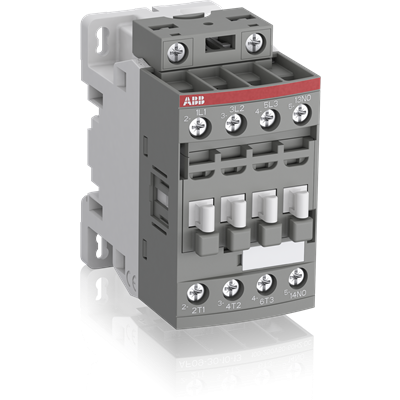

The ABB AF09-30-10-11 is a 3 pole contactor designed for controlling motors up to 4 kW / 400 V AC and switching power circuits up to 25 A. Featuring a built-in auxiliary contact and screw terminals, this contactor operates efficiently in both 690 V IEC and 600 UL environments. The AF technology integrated into this contactor allows for a wide control voltage range of 24-60 V 50/60 Hz and 20-60 V DC, making it ideal for managing large control voltage variations. The AF09-30-10-11 also incorporates built-in surge protection, reducing panel energy consumption and ensuring reliable operation in unstable networks. Additionally, its block type design facilitates easy extension with add-on auxiliary contact blocks and a wide range of accessories, making it a versatile choice for various applications.

Key Features

  • 3 pole - 690 V IEC or 600 UL contactor
  • Built-in auxiliary contact and screw terminals
  • Controls motors up to 4 kW / 400 V AC
  • Wide control voltage range: 24-60 V 50/60 Hz, 20-60 V DC
  • Built-in surge protection for stability in networks

Technical Specifications

Specification Value
MaterialHigh-quality electrical components
DimensionsHeight: 86 mm, Width: 45 mm, Depth: 77 mm
Weight0.27 kg
PowerControl Voltage Range: 24-60 V 50/60 Hz, 20-60 V DC
Warranty1-year limited warranty
Product form

ABB AF09-30-10-11 Contactor 690V

قاطع ذو ثلاث أقطاب فعال مع نطاق جهد واسع، مثالي للتحكم في المحركات وتبديل دوائر الطاقة. Read more

    SKU: 1SBL137001R1110

          قاطع ذو ثلاث أقطاب فعال مع نطاق جهد واسع، مثالي للتحكم في المحركات وتبديل دوائر الطاقة.

          Description

          Description

          Efficient 3 pole contactor with wide voltage range, ideal for motor control and power circuit switching.
          The ABB AF09-30-10-11 is a 3 pole contactor designed for controlling motors up to 4 kW / 400 V AC and switching power circuits up to 25 A. Featuring a built-in auxiliary contact and screw terminals, this contactor operates efficiently in both 690 V IEC and 600 UL environments. The AF technology integrated into this contactor allows for a wide control voltage range of 24-60 V 50/60 Hz and 20-60 V DC, making it ideal for managing large control voltage variations. The AF09-30-10-11 also incorporates built-in surge protection, reducing panel energy consumption and ensuring reliable operation in unstable networks. Additionally, its block type design facilitates easy extension with add-on auxiliary contact blocks and a wide range of accessories, making it a versatile choice for various applications.

          Key Features

          • 3 pole - 690 V IEC or 600 UL contactor
          • Built-in auxiliary contact and screw terminals
          • Controls motors up to 4 kW / 400 V AC
          • Wide control voltage range: 24-60 V 50/60 Hz, 20-60 V DC
          • Built-in surge protection for stability in networks

          Technical Specifications

          Specification Value
          MaterialHigh-quality electrical components
          DimensionsHeight: 86 mm, Width: 45 mm, Depth: 77 mm
          Weight0.27 kg
          PowerControl Voltage Range: 24-60 V 50/60 Hz, 20-60 V DC
          Warranty1-year limited warranty
