Premium 17.5 mil silver aluminum vibration damping tape with viscoelastic polymer adhesive for aerospace, automotive, and industrial applications. Cold temperature resistant to -76°F/-60°C with FAR 25.853(a) compliance.

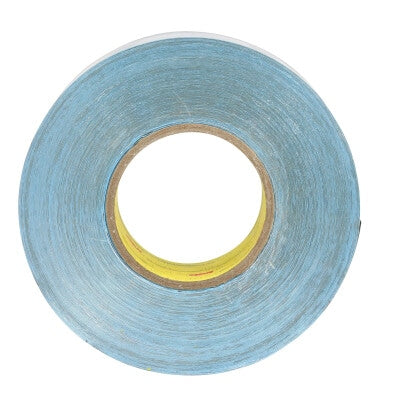

3M™ Vibration Damping Tape 436 is a premium silver, dead soft aluminum foil constraining layer coated with a pressure-sensitive viscoelastic polymer adhesive on a blue polyethylene easy-release liner. This industrial-grade tape is specifically engineered to absorb and dissipate vibration while reducing noise in demanding applications. The 17.5 mil thickness provides optimal damping performance with minimal surface coverage requirements, making it an economical choice for large-scale applications. This tape is designed to reduce structure-borne noise and fatigue in metal and composite panels and support structures across aerospace, automotive, construction, appliance, and MRO industries. With exceptional cold temperature resistance performing reliably at temperatures as low as -76°F/-60°C, this tape maintains its damping properties in extreme environmental conditions. The linered construction provides die-cutting capabilities for custom applications, while the viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy into heat, effectively suppressing resonant noise and vibration. Meeting FAR 25.853(a) specifications, this tape is engineered for long-term durability and reliability in aerospace and industrial applications. Each case contains 4 rolls of 3-inch width by 36-yard length, providing 432 total linear feet of damping material.
Key Features
- Viscoelastic polymer adhesive optimized to convert vibrational energy into heat for effective noise and vibration reduction
- Cold temperature resistance performing reliably at temperatures as low as -76°F/-60°C for extreme environment applications
- Resists weather and UV degradation ensuring consistent performance in difficult outdoor and industrial applications
- Linered construction provides die-cutting capabilities for custom sizing and specialized applications
- Effective damping with as little as 10% surface coverage reducing material costs while maintaining performance
- Dead soft aluminum foil backing provides superior constraining layer performance
- FAR 25.853(a) compliance for aerospace and aviation industry standards
- Long aging tape designed for extended service life in demanding industrial environments
Technical Specifications
| Specification |
Value |
| Product Name | 3M Vibration Damping Tape 436 |
| Part Number | 436 |
| UPC | 00051138956301 |
| Color | Silver |
| Overall Width (Imperial) | 3 inches |
| Overall Width (Metric) | 76.2 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.91 meters |
| Total Thickness | 17.5 mil |
| Backing (Carrier) Thickness (Imperial) | 12 mil |
| Backing (Carrier) Thickness (Metric) | 0.3 mm |
| Adhesive Thickness (Imperial) | 5.5 mil |
| Backing Material | Dead soft aluminum foil |
| Adhesive Type | Viscoelastic Polymer |
| Primary Liner | Polyethylene (Blue) |
| Tensile Strength (Imperial) | 800 oz/in |
| Tensile Strength (Metric) | 87.6 N/100mm |
| Elongation at Break | 12% |
| Maximum Operating Temperature (Fahrenheit) | 68°F |
| Maximum Operating Temperature (Celsius) | 20°C |
| Minimum Operating Temperature (Fahrenheit) | -76°F |
| Minimum Operating Temperature (Celsius) | -60°C |
| Shelf Life | 24 months |
| Units per Case | 4 rolls |
| Total Linear Feet per Case | 432 feet |
| Smallest Saleable Unit | Roll |
| Application Type | Vibration Damping |
| Specifications Met | FAR 25.853(a) |
| Brand | 3M |
| Industries | Aerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military & Government, Specialty Vehicles, Transportation |
| Recommended Surface Coverage | Effective damping with as little as 10% coverage |
| Environmental Resistance | Weather and UV degradation resistant |
Order 3M Vibration Damping Tape 436 Silver 3 inch 36 yard at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
